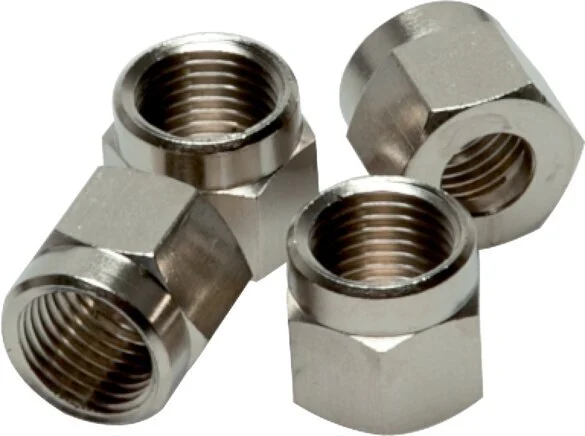

10 (M16x1.5) Brass Union Nut [10 Pieces]

This brass union nut (female threads) is designed to be used with a cutting ring fitting. Suitable for pipes with an outer diameter of 10 mm. In accordance to the DIN 2353, it has an L (series) load class. The maximum pressure is 115 bar (1668 psi). The nut is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with the ISO 8434-1.

Pros:

• Adheres to ISO 8434-1

Specifications

Connection size : M16 x 1.5
Outer diameter : 10 mm
Material : Brass
Load class (DIN 2353) : L (light)
Max pressure at 20 °C (bar) : 115
Min temperature (°C) : -60
Max temperature (°C) : 300
Standard : DIN EN ISO 8434-1 (DIN 2353)
Size of threaded connection [inch] : M16 x 1.5
