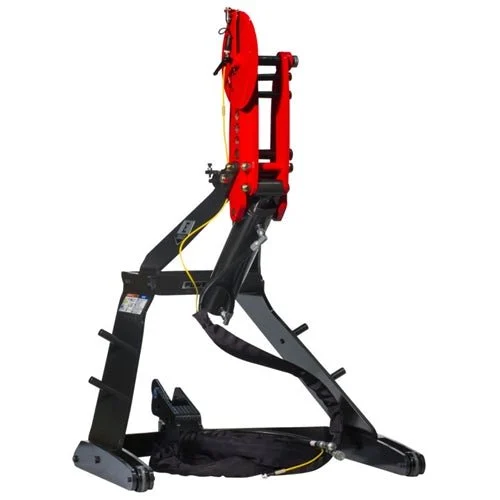

10 Ton Bender

Get Bent!

• Plug + Play Operation
• Horizontal or Vertical Operating Positions
• Proximity Switch Allows Easy, Repeatable Bends
• Heavy-Duty Rolling Stand
• Easy-to-Use Hand/Jog Controls

Our 10 Ton Bender is a quick-connect hydraulic tool that greatly expands your fabrication capabilities. Designed for medium to heavy material, the Edwards 10 Ton Bender powers through 2″ (I.D.) Schedule 40 pipe, 2-1/2″ (O.D.) tube and 2″ square tube quickly and accurately. Choose from our over 280 standard Bender Die Sets to get your job done. Call for custom die information and material compatibility requirements.

GENERAL SPECIFICATIONS

EDWARDS IRONWORKER/

PORTA-POWER

Standard Motor 5 HP 3~ 208 V or 230 V

1725 RPM 14 A

Optional Motors 5 HP 3~ 460 V

1725 RPM 7 A

5 HP 3~ 575 V

1725 RPM 6 A

5 HP 1~ 208 V or 230 V

1725 RPM 23 A

Hydraulic Pump 3-1/2 GPM – 1 Stage

Valve Pressure 2750 PSI

Reservoir 7 Gallons

GENERAL SPECIFICATIONS

Bend Capacity 180°

Pipe Capacity 2″ (ID) Schedule 40

Tube Capacity 2-1/2″ (OD) .095″

Square Tube Capacity 2″ (OD) .25″

Chromoly Capacity 2-1/4″ (OD) .083″

Cylinder 1-3/4″ Ram

Stroke 14″

DIMENSIONS

Height 40-1/2″

Width 36-1/2″

Depth 42″

Shipping Weight 600 lb
