10L (M16x1.5) Brass Cutting ring [10 Pieces]

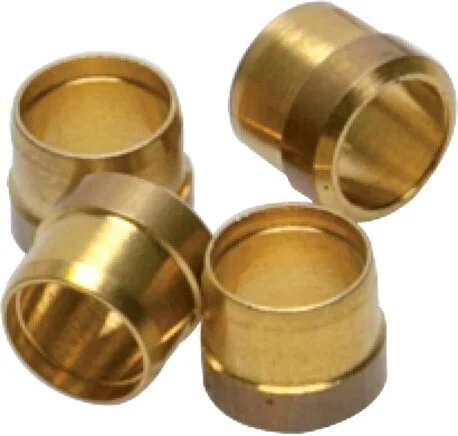

This brass cutting ring is the component that needs to be replaced after use in a cutting ring fitting. It is designed for an outer pipe/hose diameter of 10 mm. Suitable for a M16x1.5 union nut. It has an L (light) load class according to the DIN 2353. The maximum pressure is 115 bar (1668 psi).

Pros:

• Suitable for copper tube
• Suitable for plastic tube

Specifications

Outer pipe diameter (mm) : 10
Union nut thread : M16 x 1.5
Load class (DIN 2353) : L (light)
Material : Brass
Max pressure at 20 °C (bar) : 115
With sealing : No
With safety collar : No
With knurl : No
Suitable for aluminum tube : No
Suitable for copper tube : Yes
Suitable for plastic multi-layer pipes : Yes
Suitable for plastic tube : Yes
Suitable for stainless steel tube : No
Suitable for steel tube : No
