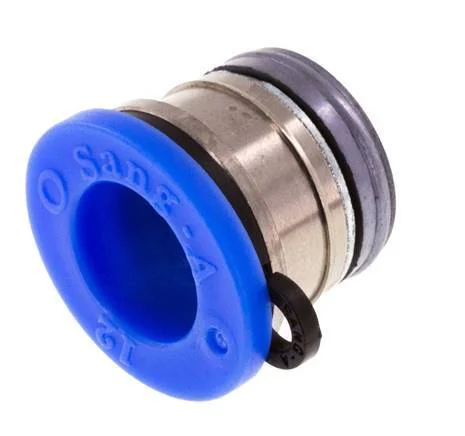

12 mm Push-in Cartridge Brass/PBT [10 Pieces]

This is a push-in fitting cartridge with a 12 mm push-in connection and with a 10 mm cartridge connection. The body made of brass/PBT. The connection ports are made of brass and PBT materials. The seal material is an NBR. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 60 °C (-4 to 140 °F). Install cartridge: 1) Manufacture of step holes using a step drill or injection molding. 2) Pressing the cartridge in. 3) Lateral removal of the installation guard.

Pros:

• It has a push-in connection for easy installation and release for pneumatic hosing
• Compact design
• No thread spindle required
• Mechanical installation possible
• Cartridge consists of just one part

Specifications

Push-in connection : 12 mm
Connection type : Push-in,Cartridge
Material : Brass/PBT
Seal material : NBR (nitrile rubber)
Min pressure (bar) : -0.95
Max pressure at 20 °C (bar) : 10
Min temperature (°C) : -20
Max temperature (°C) : 60
Fitting features : Vacuum
Cartridge size : 10 mm
Material connection 1 : PBT
Material connection 2 : PBT
Shape : Straight
With drain : No
