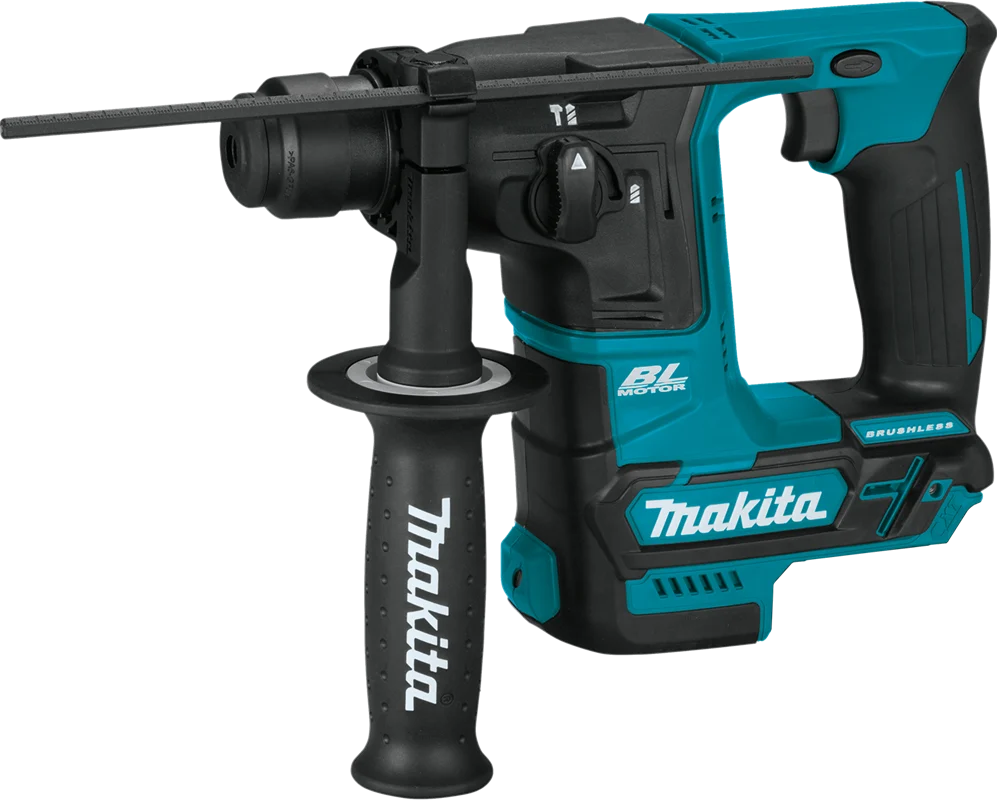

12V max CXT? Lithium-Ion Brushless Cordless 5/8″ Rotary Hammer, accepts SDS-PLUS bits, Tool Only, RH01Z

The 12V CXT® Lithium-Ion Brushless 5/8” Rotary Hammer (RH01Z, tool only, batteries and charger sold separately) is a compact concrete drilling solution powered by an efficient Makita BL™ Brushless Motor for up to 50% longer run time, increased power and speed, and longer tool life. The RH01Z delivers 0-680 RPM, 4,800 BPM, and 1.1 Joules of impact energy. Ease-of-use and efficiency features include 2-mode operation (rotation only, hammering with rotation), a variable speed trigger, and a vibration-absorbing handle that moves independently of the motor and hammer mechanism for increased operator comfort.

12V max CXT® cordless tools are compatible with 12V max CXT® Lithium-Ion 2.0Ah and 4.0Ah batteries (BL1021B and BL1041B, sold separately). 12V max CXT® Lithium-Ion batteries are engineered with a Battery Protection Circuit that protects against overloading, over-discharging and over-heating. It’s part of the expanding 12V max CXT® series, combining performance with superior ergonomics in a compact size.

FEATURES

• Brushless motor delivers 0-680 RPM, 0-4,800 BPM and .81 ft.lbs./1.1 Joules of impact energy for faster drilling
• Compact and Ergonomic design at only 9-7/8″
• Weighs only 4.0 lbs. with battery (battery not included) for reduced operator fatigue
• Vibration absorbing handle moves independently of the motor and hammer mechanism for increased operator comfort
• The electronically-controlled BL™ Brushless Motor efficiently uses energy to match torque and RPM to the changing demands of the application
• Efficient BL™ Brushless motor is electronically controlled to optimize battery energy use for up to 50% longer run time per charge
• The BL™ Brushless Motor eliminates carbon brushes, enabling the BL Motor to run cooler and more efficiently for longer life
• For dust management use Dust Extraction Cup Set (199245-6) which includes Side Handle, Spacer, Side Handle Base and Bolt
• 2-Mode operation for “Rotation Only” or “Hammering with Rotation” for multiple applications
• Variable speed trigger enables user to match the speed to application for greater versatility
• Built-in L.E.D. light illuminates the work area
• One-touch sliding chuck for easy bit changes
• Battery Protection Circuit protects against overloading, over-discharging and over-heating
• Part of the expanding 12V max CXT® series, combining performance with superior ergonomics in a compact size
• Not compatible with 12V max pod-style tools, batteries and chargers
• 3-year limited warranty
• Only use genuine Makita batteries and chargers

SPECS

• Max. Capacity (concrete drilling) : 5/8″
• Optimum Range (concrete drilling) : 5/32″ – 3/8″
• Impact Energy (Joules) : 1.1 J
• Impact Energy (ft.lbs.) : .81
• Vibration (m/s²) : 7.5
• No Load Speed (variable speed) : 0 – 680 RPM
• Blows Per Minute (variable speed) : 0 – 4,800 BPM
• Battery : 12V max CXT® Lithium-Ion

• Overall Length : 9-7/8″
• Net Weight (with battery) : 4 lbs.
• Bit Type : Accepts SDS-PLUS
• Power Type : Cordless
• Motor Type : Brushless
• Shipping Weight : 4.25 lbs.
• UPC Code : 088381-838498
