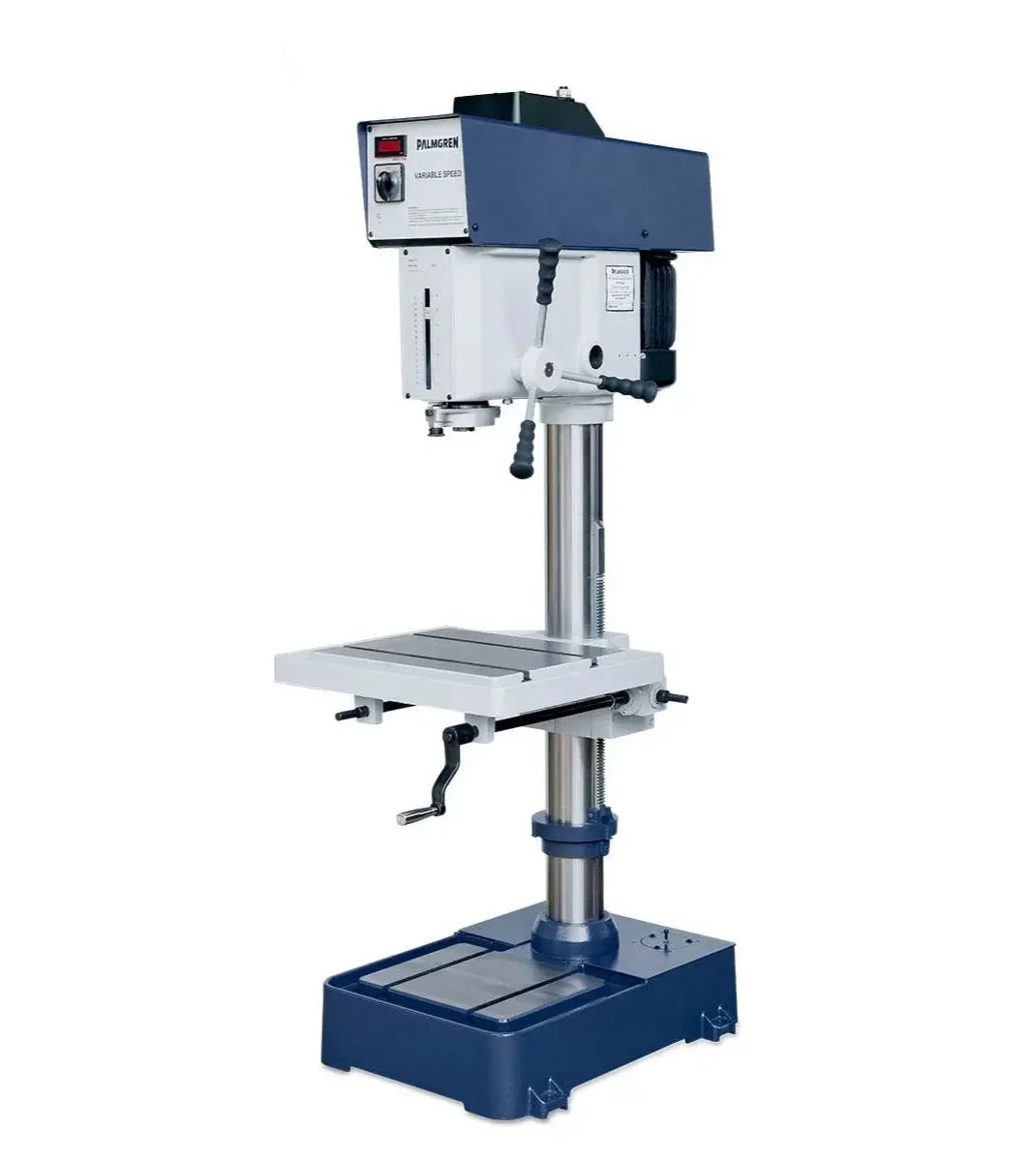

These Drill Presses have the weight and rigidity to maintain the built-in tight tolerances required for metalworking applications.
The oversized, massive drill heads have widely spaced bearing surfaces that provide full quill support throughout its travel. A wider range of operation speeds for drilling both large and small holes.
- Fully enclosed spindle for accurate drilling operations
- Maximum spindle run out of 0.0005″
- Extended quill/spindle travel ideal for deep hole applications
- LED readout of spindle speed
- Rack and pinion table raiser
- Precision ground t-slotted work table with coolant trough
- Table tilts 45° right and left and rotates 360° around the column
- Quick change vertical depth stop for accurate, repeatable feed length
- Heavy cast metal 3 spoke quill feed handle with ergonomic speed feed handle
- Front mounted industrial paddle-type power switch
- Includes chuck with key and arbor
| Specification | Value |
|---|---|
| AMPS | 8.6/4.3 |
| Capacity Cast Iron | 5/8″ |
| Country of Origin | CN |
| Drill Press Model | Bench Model |
| Drill Press Type | Step Pulley |
| Motor HP | 1/2 |
| RPM | 138 – 3476 |
| Spindle Taper | MT2/JT3 |
| Spindle Travel | 5″ |
| Swing | 15″ |
| Table Dimensions | 11-1/2″ x 11-1/2″ |
| Table Slots | 5/8″ |
| Voltage | 120/240 |
| Warranty | 3 Year |
| UPC | 726896801575 |
| Unit of Measure | Each |
| Product Height (in) | 43 |
| Product Length (in) | 13.5 |
| Product Width (in) | 27 |
| Product Weight (lbs) | 185 |
