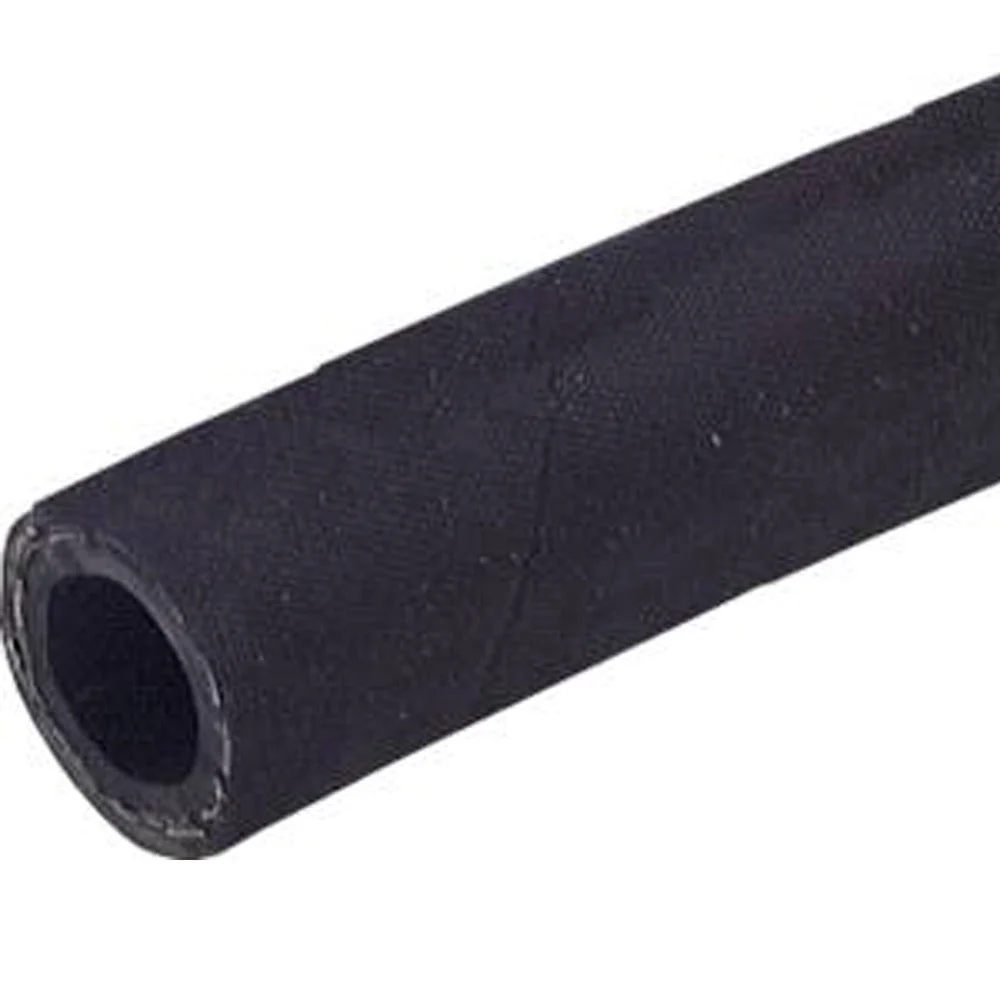

High quality 38.1 mm 1SN hydraulic hose in the colour . The hose is suitable for hydraulic oils based on mineral oil, air, water and lubricants. Hose must be pricked if it is used for air. The hose is fabricated according to the 1SN standard. It is made of Rubber and has 1 steel inlay(s). The temperature range is -40 °C – 100 °C. The hose has an operating pressure of 50 bar and bursting pressure of 260 bar. Due to the high quality rubber material the hose is ozone, weather and abrasion resistant and offers excellent usability in the mining, construction and machine building industries. The standardized nominal diameter of the hose is DN 38. This hose is sold at a pre-cut length of 3 m. Hose conforms to EN 853 & SAE 100 R4 standard(s).
Pros:
- Ozone, weather and abrasion resistant
- Large temperature range (-40 °C – 100 °C)
- Very high bursting pressure (260 bar)
- Hose conforms to EN 853 & SAE 100 R4 standard(s)
Cons:
- Without couplings
HL-R-1SN series
The HL-R-1SN hoses are high-quality hydraulic hoses suitable for the mining, construction and machine building industries. The hoses are made of rubber with has 1 steel inlay(s). Due to the high quality rubber material the hoses are ozone, weather and abrasion resistant. The hoses are available in pre-cut lengths of 1, 3, 10 and 25 meters.
Specifications
Outer diameter (mm) : 49.7
Hose length (m) : 3
Hose material : Rubber
Hose features : Ozone resistance,Weather resistance
Standard : EN 853
Roll length (m) : 25
Model : 1SN
