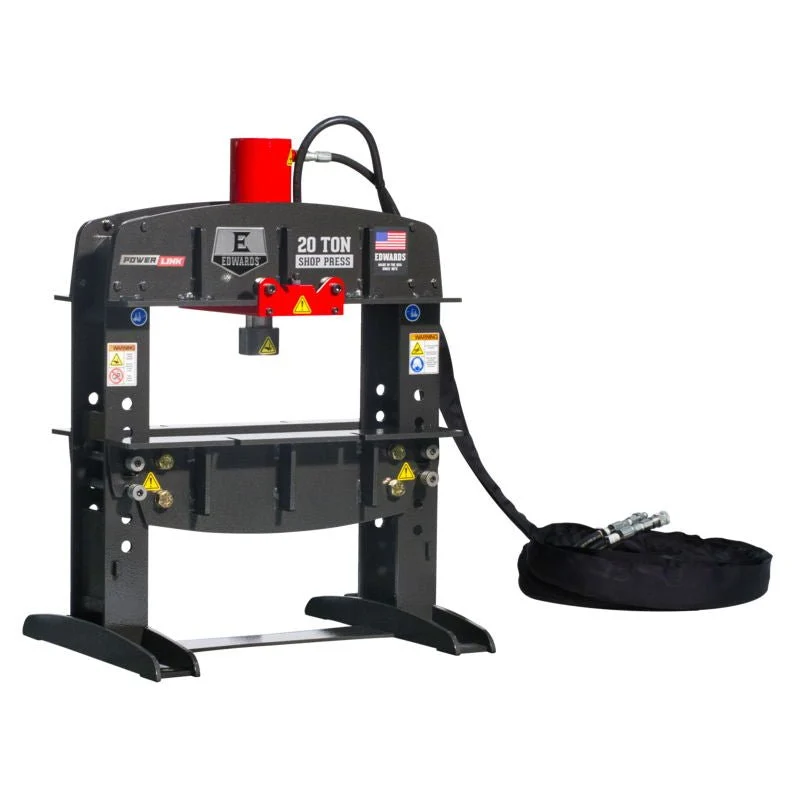

20 Ton Shop Press

Compact & Powerful Benchtop Press.   Our 20 Ton Shop Press may be small enough to fit on your work bench but it’s no lightweight.

• Heavy-Duty 3/8″ Steel Construction
• Cylinder with 2″ Ram and 6-1/4″ Stroke
• Rolling Cylinder for Maximum Versatility
• Working Area of 10-1/2″ x 20″
• Easy-to-Use Hand/Jog Controls
• Quick Disconnect Hoses
• Hydraulic-Assist Table Height Adjustment

Smooth and precise, heavy-duty and versatile, the unique open side design allows for material to pass through. Power it up with an Edwards Ironworker with factory installed PowerLink System or an Edwards Portable Power Unit.
Check out our 12″ Press Brake Tooling, bump-die tooling, the 6-Piece Press Tooling Set and the Press Brake Back Gauge.

GENERAL SPECIFICATIONS

EDWARDS IRONWORKER/

PORTA-POWER

Standard Motor 5 HP 3~ 208 V or 230 V

1725 RPM 14 A

Optional Motors 5 HP 3~ 460 V

1725 RPM 7 A

5 HP 3~ 575 V

1725 RPM 6 A

5 HP 1~ 230 V

1725 RPM 23 A

Hydraulic Pump 3-1/2 GPM – 1 Stage

Valve Pressure 2750 PSI

Reservoir 7 Gallons

GENERAL SPECIFICATIONS

Rating 20 Tons

Cylinder 2″ Ram

Stroke 6-1/4″

DIMENSIONS

Height 37″

Width 27″

Depth 24″

Shipping Weight 400 lb
