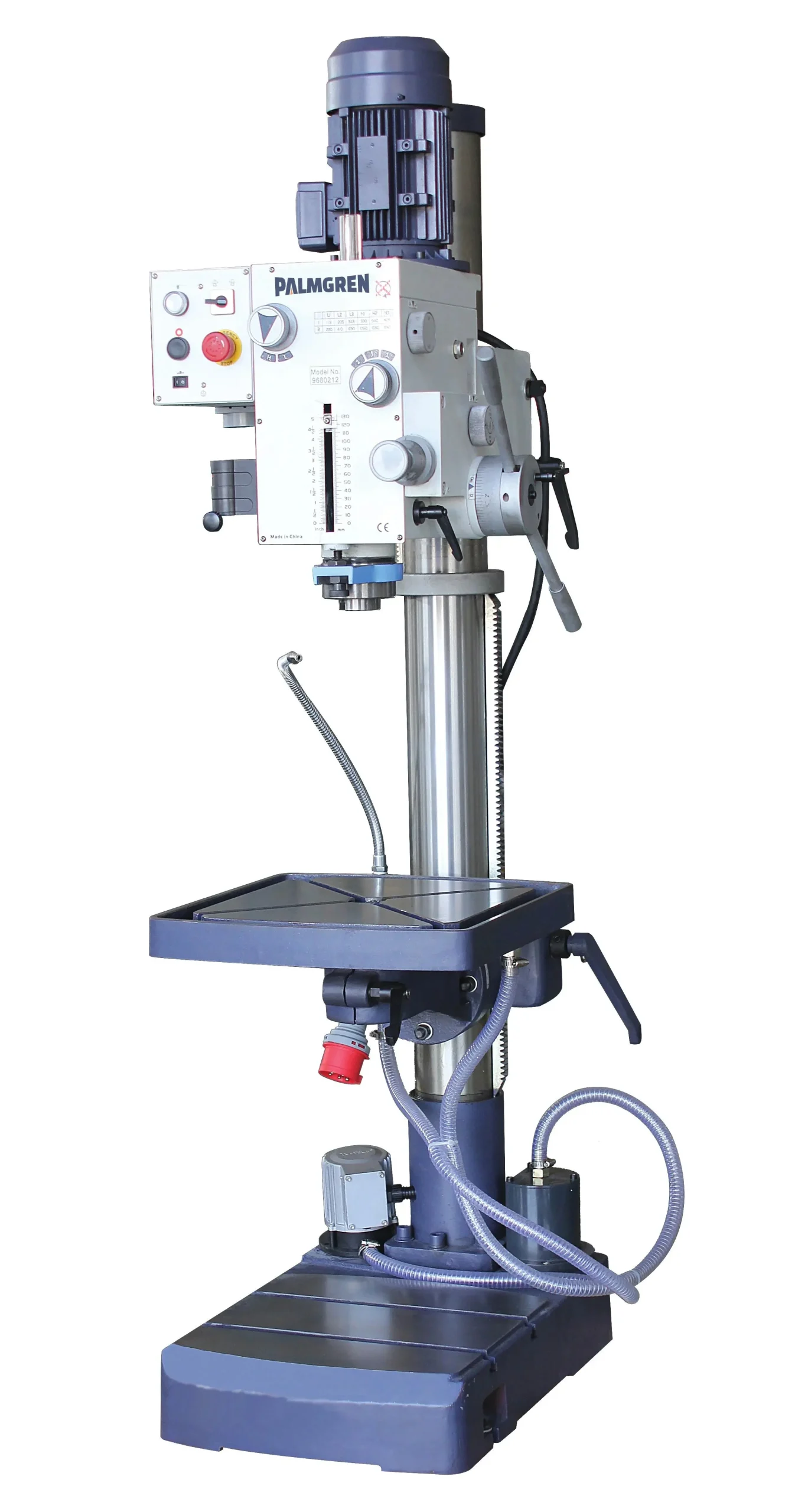

Ruggedly constructed Palmgren’s 22” gear head drill press delivers full power at any speed and has the operational features to withstand continuous industrial use.
This heavy duty drill press uses a mechanical clutch system for the power feed and is built to handle all you drilling, reaming, chamfering, tapping, spot facing and counter boring applications with ease.
- Spindle gear box is equipped with hardened and ground steel gears and shafts lubricated on a continuous oil bath for long term quite, smooth operation
- Fully enclosed machine tool ground spindle with internal 4 MT mounted in precision bearings for maximum accuracy, minimizing deflection
- Front mounted control panel designed for operator convenience
- Forward & reverse spindle switch
- Mechanical clutch spindle power feed
- Fine feed wheel for small hole and finishing operations
- Rack and pinion head and table raiser system
- T-slotted production table and base
- Front mounted dial adjusted work stop
- 4 1/2″ column provides maximum head, table and base support and stability
- Safety electrical package with emergency push button stop switch, 24 volts at the switch and interlocking chuck guard
- Flood coolant system
| Specification | Value |
|---|---|
| Capacity Cast Iron | 1-9/16″ |
| Capacity Steel | 1-1/4″ |
| Chuck Size | 1/32-5/8″/JT3 Keyed Chuck |
| Column Diameter | 4-1/2″ |
| Country of Origin | CN |
| Drill Press Model | Bench Model |
| Drill Press Type | Gear Head |
| Max. Spindle To Base | 46-1/4″ |
| Model Number | B40PTE |
| Motor HP | 1-1/2 |
| Number of Spindle Speeds | 12 |
| Number of Table Slots | 2 |
| Overall Dimensions (LxWxH) | 23-1/2″ x 28″ x 80″ |
| Phase | Three |
| Power Feed | Yes |
| Quill Diameter | 2 – 61/64″ |
| Spindle Taper | MT4/JT3 |
| Spindle Travel | 4-3/4″ |
| Swing | 22″ |
| Table Dimensions | 16-3/4″ x 17-1/2″ |
| Table Slot Size | 1/2″ |
| Warranty | 3 Year |
| UPC | 726896802121 |
| Unit of Measure | Each |
| Product Height (in) | 80 |
| Product Length (in) | 28 |
| Product Width (in) | 23.5 |
| Product Weight (lbs) | 780 |
