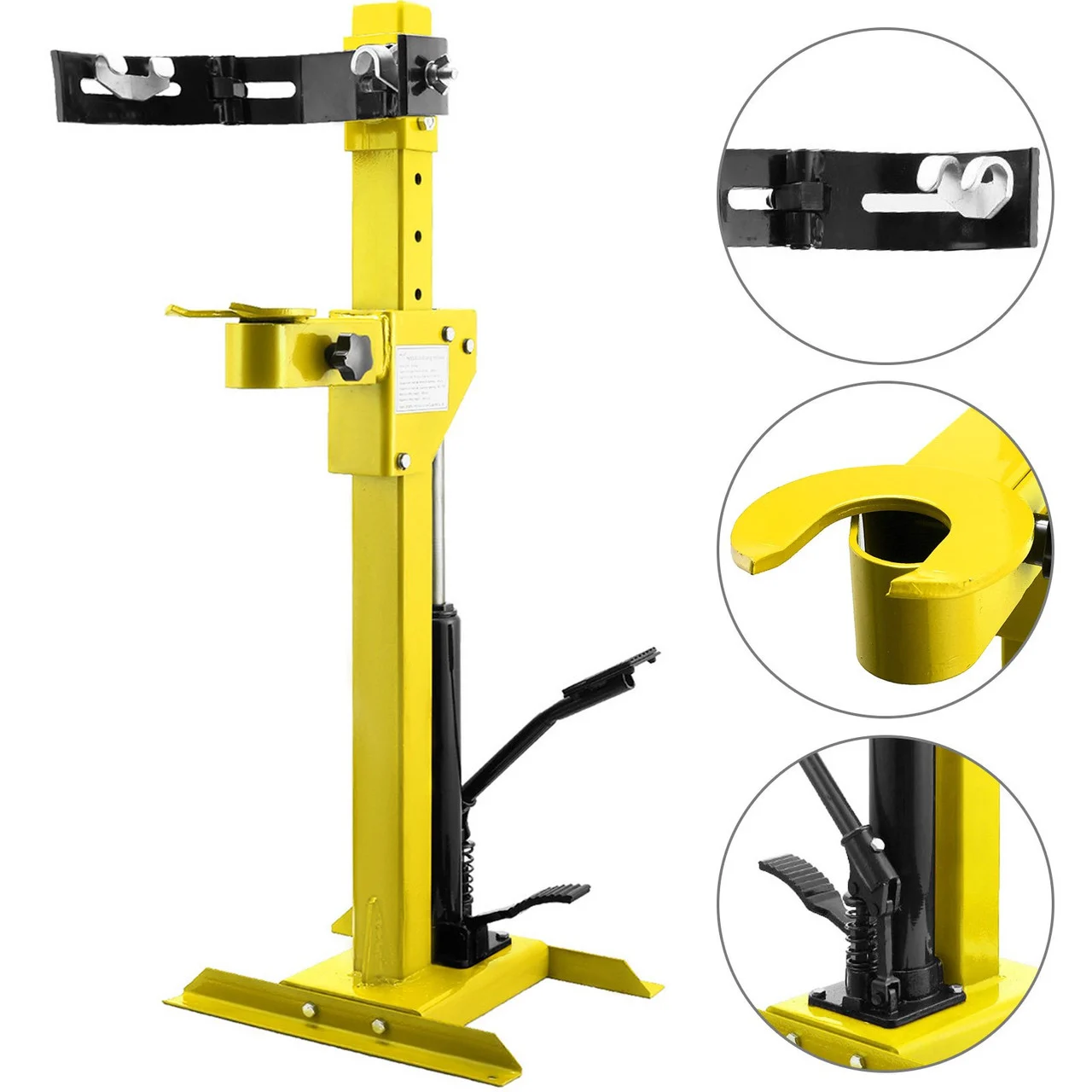

- 5500LBS Strut Spring Compressor: Capacity: 2.5 tons/5500 lbs. Ram Stroke: 12.6 in/320 mm. Applicable Spring Diameter: 2.8 in – 7.9 in/70 mm-200 mm. our’s strut spring compressor can work on tough springs. With a strut spring compressor, you’ll be able to replace and remove springs from your vehicle with security.
- Strong & Reliable Compressor: The min. support bar shaft open: 2.6″x 2″/65 x 51 mm. The max. support bar shaft open: 2.4″ x 11.8″/60 x 300 mm. Lifting Range: 19.5″-32.3″/495-820 mm. This strut spring compressor will increase your ability to hold and compress all sizes and types of struts and springs.
- Time-saving & Effort-saving: Foot-pedal design makes the strut coil spring compressor extremely easy to operate, so you can get the job done on your own. And the bottom adopts a high-quality hydraulic cylinder. The diameter of the oil cylinder is 1.1 in/8 mm, with no oil leakage.
- Heavy-duty Steel Construction: The steel spring compressor is strong enough to handle the tough jobs of compressing your vehicle springs. A high-quality compressor can handle the pressure without bending or snapping when your coil is fully compressed. Get ready to effortlessly handle vehicle springs like a pro.
- Wide Application: Our hydraulic compressor is suitable for the disassembling and assembling strut-type shock-absorbing springs for cars, off-road vans, pickup trucks, and other vehicles. Using a car spring compressor creates a much more effective working environment around your vehicle.
Specifications
- Load Capacity: 2.5T (5500 lbs)
- Cylinder Piston Stroke: 320 mm (12.6″)
- Applicable Spring Diameter: 70~200 mm (2.8″~7.9″)
- Piston Diameter: 28 mm (1.1″)
- Min. Support Bar Shaft Open: 65* 51 mm (2.6″* 2″)
- Max. Support Bar Shaft Open: 60* 300 mm (2.4″* 11.8″)
- Jack Lifting Height: 495~820 mm (19.5″* 32.3″)
- Height Adjustment: Adjustable with 7 holes on the column
- Gross Weight: 30.2 kg (66.6 lbs)
- Package Dimensions: 109* 29* 23 cm (42.9″ x 11.4″ x 9.1″)
