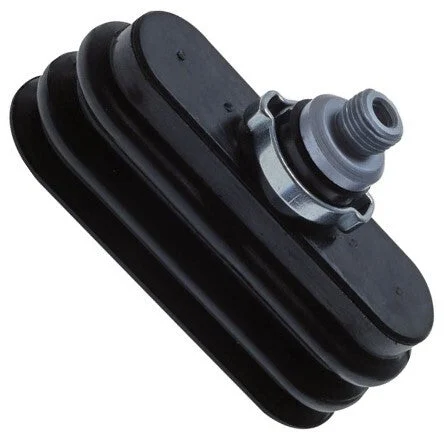

The vacuum suction cup is used in vacuum systems for pick-and-place operations. The main selection criteria for suction cups are material, shape and diameter. This oval bellows type vacuum cup can be used to lift materials witha curved, angled surface or surfaces with varying heights. The oval shape is suitable for lifting long objects. The suction cup is made from grey NBR (nitrile rubber) and is recommended for universal use. Please see our datasheet with material specifications.
The size of the suction cup is 25×8 mm and the stroke (cup deflection) is 6 mm. The connection port is G 1/8 inch and the nominal diameter is 3 mm. The shore hardness is 45-55 Type A. The suction cup is suitable for temperatures between -30 °C and 90 °C (-22 °F and 194 °F).
Pros:
- The cup is delivered including fitting with a G 1/8 inch connection
- For universal use
- Includes an ear clamp to fix the cup on the fitting
- Compatible with PIAB suction grippers
SCL series
The SCL series vacuum suction cups come with round and oval shapes, both possible as flat or bellows cups. They are available in different materials, such as NBR, Silicone, SBR, Polyurethane (PUR), Chloroprene Rubber (CR) or NR (natural rubber). The large choice of materials makes them suitable for a wide range of different applications. The diameter of round suction cup ranges from 5 to 225 mm. The oval suction cups are available in 15×5 and 100×35 mm. They have different strokes varying from 0.5 to 30 mm (the bellows suction cups have higher strokes). The suction cups can be either with a pre-installed fitting or without fittings. They are available with additional features like support ribs, suction strainer, ear clamps, robust lips, thin lips and double safety lips.
Specifications
Connection size : 1/8 inch
Oval suction cup size : 25×8 mm
Suction cup shape : Oval/Bellows
Suction disc diameter (mm) : 25
Material : NBR (nitrile rubber)
Stroke (mm) : 6
Nominal diameter (mm) : 3
Shore hardness : 45-55 Type A
Vacuum cup features : With ear clamp
Connection type : Outer thread cylindrical BSPP-G
Min temperature (°C) : -30
Max temperature (°C) : 90
Color : Grey
