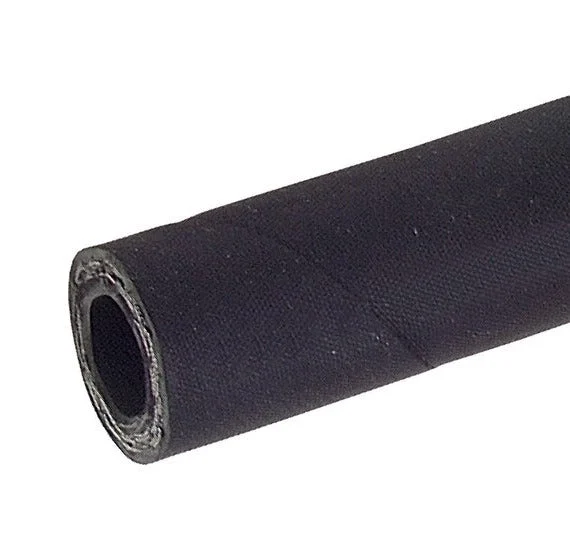

High quality 12.7 mm 2SN hydraulic hose in the colour . The hose is suitable for hydraulic oils based on mineral oil, air, water and lubricants. Hose must be pricked if it is used for air. The hose is fabricated according to the 2SN standard. It is made of Rubber and has 2 steel inlay(s). The temperature range is -55 °C – 135 °C. The hose has an operating pressure of 275 bar and bursting pressure of 1100 bar. Due to the high quality rubber material the hose is ozone, weather and abrasion resistant and offers excellent usability in the mining, construction and machine building industries. The standardized nominal diameter of the hose is DN 12. This hose is sold at a pre-cut length of 10 m. Hose conforms to EN 853 & SAE 100 R4 standard(s). (Due to the manufacturing process we cannot exclude that the hose will be supplied in pieces. We attempt to deliver a maximum of 3 pieces, where none of the pieces is shorter than 3 meters)
Pros:
- Ozone, weather and abrasion resistant
- Large temperature range (-55 °C – 135 °C)
- Very high bursting pressure (1100 bar)
- Hose conforms to EN 853 & SAE 100 R4 standard(s)
Cons:
- Without couplings
HL-R-2SN series
The HL-R-2SN hoses are high-quality hydraulic hoses suitable for the mining, construction and machine building industries. The hoses are made of rubber with has 2 steel inlay(s). Due to the high quality rubber material the hoses are ozone, weather and abrasion resistant. The hoses are available in pre-cut lengths of 1, 3, 10 and 25 meters.
Specifications
Internal diameter (mm) : 12.7
Outer diameter (mm) : 22.2
Hose length (m) : 10
Hose material : Rubber
Max pressure at 20 °C (bar) : 275
Hose features : Ozone resistance,Weather resistance
Standard : EN 853
Min temperature (°C) : -55
Max temperature (°C) : 135
Outer wall material : Rubber
Bending radius (mm) : 180
Bursting pressure (bar) : 1100
Roll length (m) : 25
Number of inlays : 2
Inlay material : Steel
Outside wall color : Blue
Max. negative pressure (bar) : -0.83
