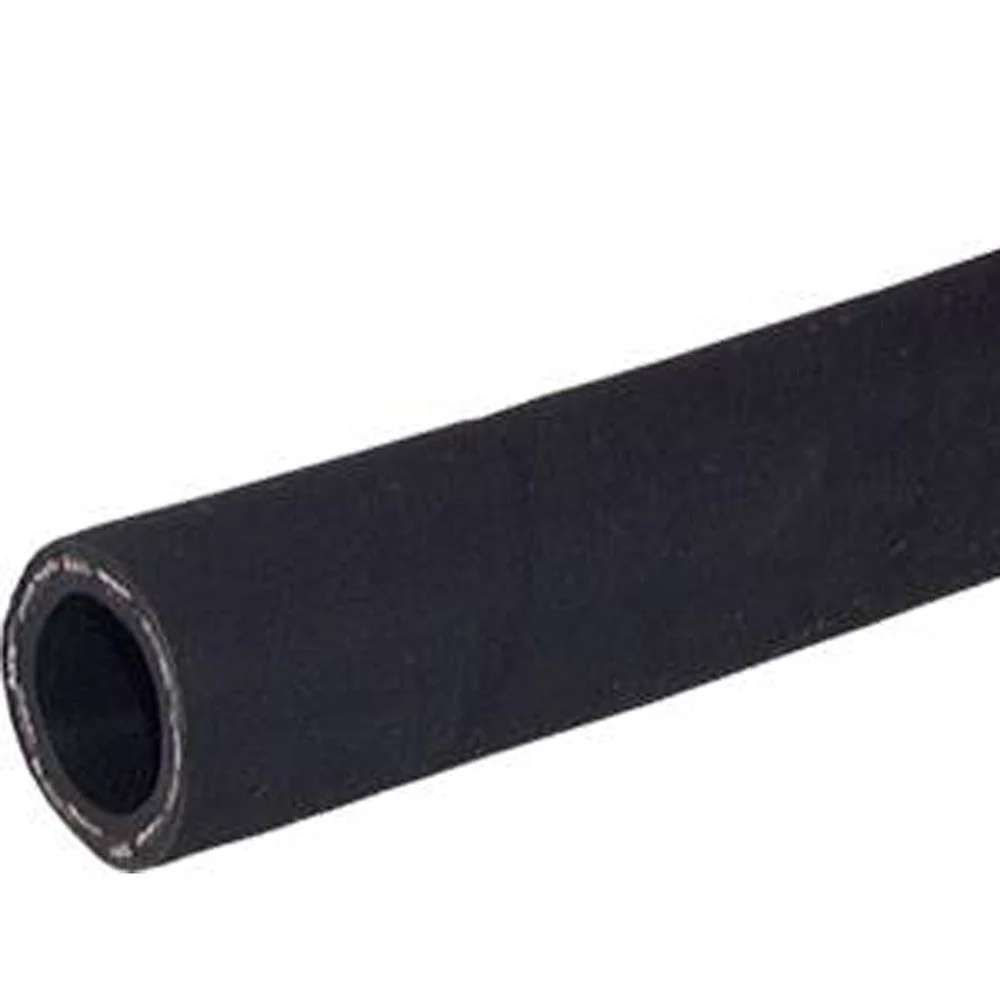

High quality 15.9 mm 2TE hydraulic hose in the colour . The hose is suitable for hydraulic oils based on mineral oil, air, water and lubricants. Hose must be pricked if it is used for air. The hose is fabricated according to the 2TE standard. It is made of Rubber and has 1 textile inlay(s). The temperature range is -40 °C – 100 °C. The hose has an operating pressure of 50 bar and bursting pressure of 200 bar. Due to the high quality rubber material the hose is ozone, weather and abrasion resistant and offers excellent usability in the mining, construction and machine building industries. The standardized nominal diameter of the hose is DN 16. This hose is sold at a pre-cut length of 25 m. Hose conforms to EN 857 & SAE 100 R4 standard(s). (Due to the manufacturing process we cannot exclude that the hose will be supplied in pieces. We attempt to deliver a maximum of 3 pieces, where none of the pieces is shorter than 3 meters)
Pros:
- Ozone, weather and abrasion resistant
- Large temperature range (-40 °C – 100 °C)
- Very high bursting pressure (200 bar)
- Hose conforms to EN 857 & SAE 100 R4 standard(s)
Cons:
- Without couplings
HL-R-2TE series
The HL-R-2TE hoses are high-quality hydraulic hoses suitable for the mining, construction and machine building industries. The hoses are made of rubber with has 1 textile inlay(s). Due to the high quality rubber material the hoses are ozone, weather and abrasion resistant. The hoses are available in pre-cut lengths of 1, 3, 10 and 25 meters.
Specifications
Outer diameter (mm) : 23.9
Hose length (m) : 25
Hose material : Rubber
Standard : EN 854
Roll length (m) : 25
Model : 2TE
