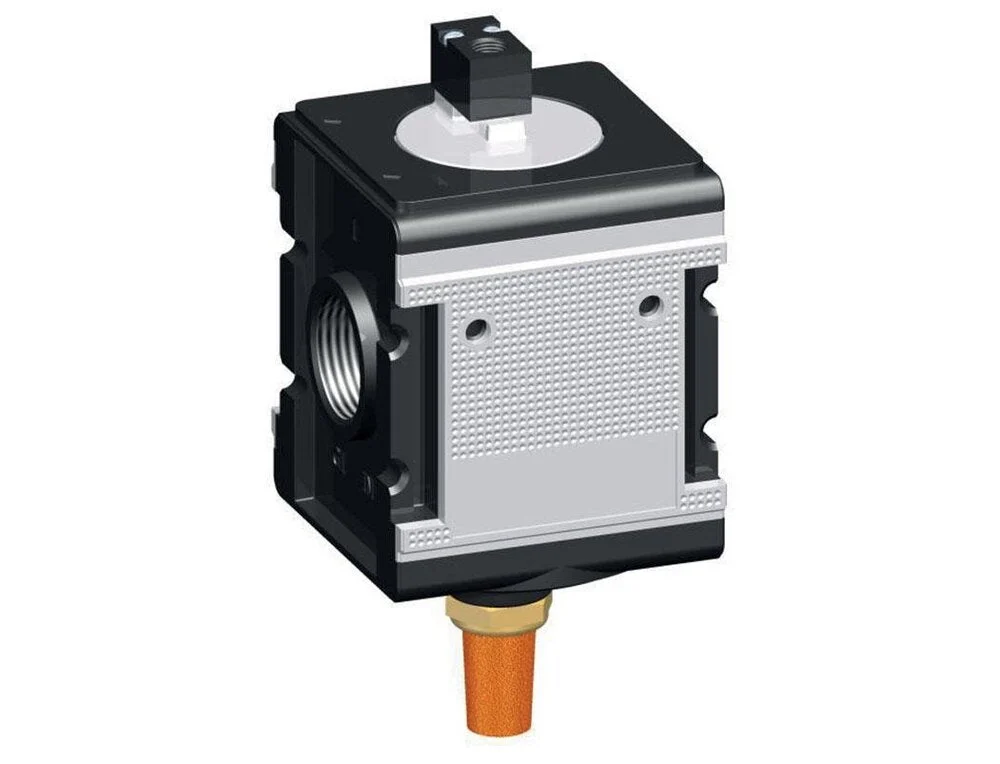

3/2 Valve G3/4 Pneumatic Operated 12500 l/min Multifix 4

This 3/2-way pneumatically actuated valve is used for pressurizing and exhausting pneumatic system. It can be used independently or in conjunction with an FRL. Shut off valves make servicing easier by depressurizing only specific parts of the system. The valve has G 3/4 inch ports and the maximum flow rate is 12500 l/min. The input pressure range is from 2 to 10 bar (29.0 to 145.0 psi). The threaded connection with the silencer allows for a ducted exhaust.

Specifications

Connection size : 3/4 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Aluminum
Seal material : NBR (nitrile rubber)
Min pressure difference (bar) : 2
Max pressure (bar) : 10
Min temperature (°C) : -10
Max temperature (°C) : 60
Max flow rate (l/min) : 12500
Valve ports/positions : 3/2 way
Model : Multifix 4
Max pressure (bar) : 10
Actuation : Air
