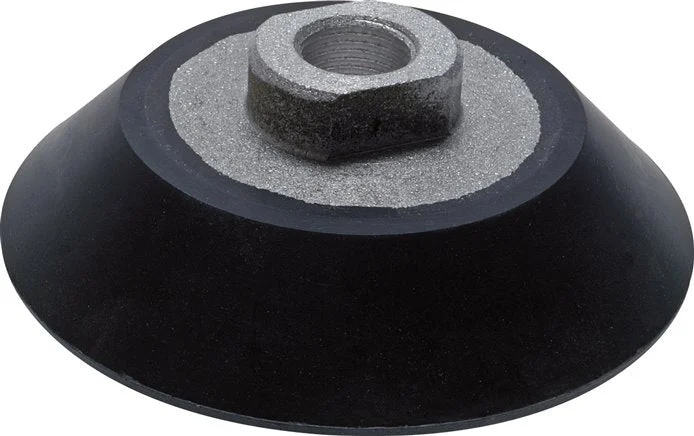

The vacuum suction cup is used in vacuum systems for pick-and-place operations. The main selection criteria for suction cups are material, shape and diameter. This flat type vacuum cup can be used to lift materials witha flat or slightly curved surface. The suction cup is made from red Silicone and is recommended for food or electronics. Please see our datasheet with material specifications.
The diameter of the suction cup is 30 mm and the stroke (cup deflection) is 2.5 mm. The connection port is M5 and the nominal diameter is 3.2 mm. The shore hardness is 60 Type A. The suction cup is suitable for temperatures between -40 °C and 200 °C (-40 °F and 392 °F).
Pros:
- The cup is delivered including fitting with a M5 connection
- Quick evacuation time and good stability thanks to the flat shape
- The double safety lip prevents separation in case the external lip leaks
- Compatible with PIAB suction grippers
SCL series
The SCL series vacuum suction cups come with round and oval shapes, both possible as flat or bellows cups. They are available in different materials, such as NBR, Silicone, SBR, Polyurethane (PUR), Chloroprene Rubber (CR) or NR (natural rubber). The large choice of materials makes them suitable for a wide range of different applications. The diameter of round suction cup ranges from 5 to 225 mm. The oval suction cups are available in 15×5 and 100×35 mm. They have different strokes varying from 0.5 to 30 mm (the bellows suction cups have higher strokes). The suction cups can be either with a pre-installed fitting or without fittings. They are available with additional features like support ribs, suction strainer, ear clamps, robust lips, thin lips and double safety lips.
Specifications
Connection size : M5
Suction cup shape : Flat
Suction disc diameter (mm) : 30
Material : Silicone
Stroke (mm) : 2.5
Nominal diameter (mm) : 3.2
Shore hardness : 60 Type A
Vacuum cup features : Double safety lips
Connection type : Inner thread metric
Min temperature (°C) : -40
Max temperature (°C) : 200
Color : Red
