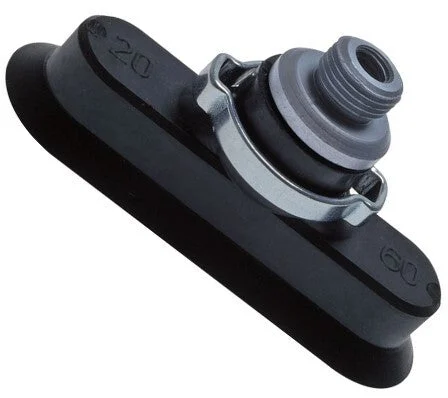

The vacuum suction cup is used in vacuum systems for pick-and-place operations. The main selection criteria for suction cups are material, shape and diameter. This oval flat type vacuum cup can be used to lift materials witha flat or slightly curved surface. The oval shape is suitable for lifting long objects. The suction cup is made from blue polyurethane (PUR) and is recommended for harsh operating conditions. Please see our datasheet with material specifications.
The size of the suction cup is 36×12 mm and the stroke (cup deflection) is 2 mm. The connection port is G 1/8 inch and the nominal diameter is 3 mm. The shore hardness is 45-55 Type A. The suction cup is suitable for temperatures between -20 °C and 80 °C (-4 °F and 176 °F).
Pros:
- The cup is delivered including fitting with a G 1/8 inch connection
- Quick evacuation time and good stability thanks to the flat shape
- Suitable for long objects
- Includes an ear clamp to fix the cup on the fitting
- Compatible with PIAB suction grippers
SCL series
The SCL series vacuum suction cups come with round and oval shapes, both possible as flat or bellows cups. They are available in different materials, such as NBR, Silicone, SBR, Polyurethane (PUR), Chloroprene Rubber (CR) or NR (natural rubber). The large choice of materials makes them suitable for a wide range of different applications. The diameter of round suction cup ranges from 5 to 225 mm. The oval suction cups are available in 15×5 and 100×35 mm. They have different strokes varying from 0.5 to 30 mm (the bellows suction cups have higher strokes). The suction cups can be either with a pre-installed fitting or without fittings. They are available with additional features like support ribs, suction strainer, ear clamps, robust lips, thin lips and double safety lips.
Specifications
Connection size : 1/8 inch
Oval suction cup size : 36×12 mm
Suction cup shape : Oval/Flat
Suction disc diameter (mm) : 36
Material : Polyurethane (PUR)
Stroke (mm) : 2
Nominal diameter (mm) : 3
Shore hardness : 45-55 Type A
Vacuum cup features : With ear clamp
Connection type : Inner thread cylindrical BSPP-G
Min temperature (°C) : -20
Max temperature (°C) : 80
Color : Blue
