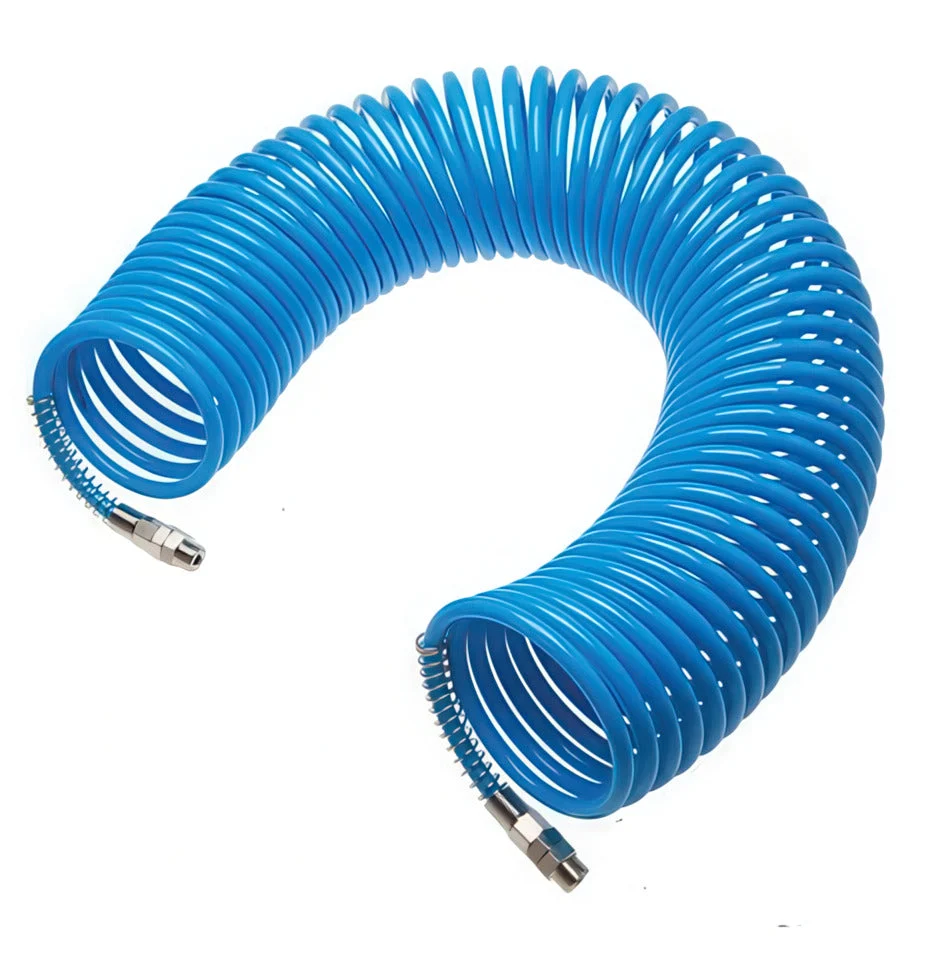

High pressure, premium 6 mm coiled air hose with 1/4 inch outer thread conical BSPT-R (ISO 7-1) connector. It is made of high quality polyamide (PA). The hose has a maximum working temperature of 90 °C and a working pressure of 19 bar at 20 °C. Hose has a working length of 3 m. polyamide is tough, light and dimensionally stable but relatively stiff, making it perfect for more extreme conditions. For more information on chemical resistance, please inform our chemical resistance articles.
Pros:
- Dimensionally stable
- Cheap solution for pneumatic lines
- Low water absorption
- High flex fatigue
HL-PA-COIL series
The pneumatic hose coil series are cost effective high quality polyamide (PA) coils. The hoses are suitable for pneumatic lines with conical BSPT-R (ISO 7-1) connections. The series offers hoses with an internal diameter of 4 – 9 mm. The hoses are available at operating lengths of 3, 5 and 7 meter.
Specifications
Internal diameter (mm) : 6
Outer diameter (mm) : 8
Hose material : Polyamide (PA)
Max pressure at 20 °C (bar) : 19
Connection size : 1/4 inch
Connection type : Outer thread conical BSPT-R
Standard : DIN 73378
Min temperature (°C) : -40
Max temperature (°C) : 90
Color : Blue
Working length (m) : 3
