3M Fire Barrier Ultra Plastic Pipe Device

Ultra-fast anchoring system-one piece makes installation easier and quicker.

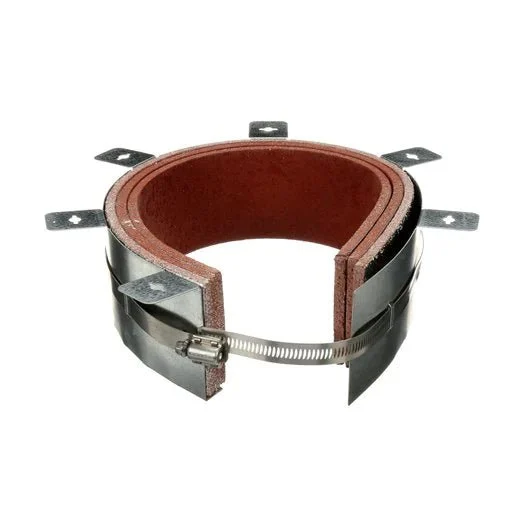

Our 3M™ Fire Barrier Plastic Pipe Device is a one piece metal collar assembly encasing 3M’s heat-expanding 3M™ Fire Barrier FS-195+ material. Used to firestop up to 6″ (168.3 mm actual) non-metallic pipe, cables and combos in new and retrofit installations. Achieves up to 2-hour fire protection in tested and listed systems.

A Quick Fit for Durable Firestop ProtectionIncorporates our 3M™ Fire Barrier Wrap Strip FS-195+ and is specifically designed to be a firestop for non-metallic, 6″ pipe penetrations. This one-piece metal collar is built to fit securely around the firestop wrap strips — no additional assembly is required. Tested for up to 2 hours of fire protection in tested and listed systems, the device holds firestop material in place and helps ensure proper closure during fire. Metal tabs make for fast, easy anchoring to wall or floor slabs with common tools and hardware such as toggle bolts for gypsum or masonry anchors for concrete. (Hardware sold separately.) The result is a permanent, fixed firestop that also contributes to the structural stability of the penetration.Recommended Applications

Features

• Tested up to 2 hours in accordance with ASTM E814 (UL 1479) & CAN/ULC-S115
• Designed for non-metallic pipes
• One-piece metal construction requires no assembly
• Tabs let installers anchor penetrations to slabs quickly and permanently

Supporting Documents

3M FIRE BARRIER PLASTIC PIPE PPD  (PDF)

3M FIRE BARRIER PLASTIC PIPE PPD  (PDF)
