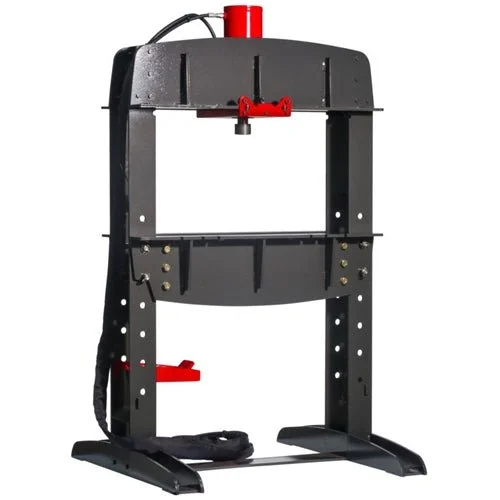

40 Ton Shop Press

Full Size at Half the Price

• Heavy-Duty 1/2″ Steel Construction
• Cylinder with 4″ Ram and 12-1/4″ Stroke
• Rolling Cylinder for Maximum Versatility
• Working Area of 38″ x 40-1/2″
• Easy-to-Use Hand/Jog Controls
• Quick-Disconnect Hoses
• Hydraulic-Assist Table Height Adjustment

Our full-sized 40 Ton Shop Press is rugged and economical. Smooth and precise, heavy-duty and versatile, the unique open side design allows for material to be worked from multiple directions. Power it up with an Edwards Ironworker with factory installed PowerLink System or an Edwards Portable Power Unit.

GENERAL SPECIFICATIONS

EDWARDS IRONWORKER/

PORTA-POWER

Standard Motor 5 HP 3~ 208 V or 230 V

1725 RPM 14 A

Optional Motors 5 HP 3~ 460 V

1725 RPM 7 A

5 HP 3~ 575 V

1725 RPM 6 A

5 HP 1~ 230 V

1725 RPM 23 A

Hydraulic Pump 3-1/2 GPM – 1 Stage

Valve Pressure 2750 PSI

Reservoir 7 Gallons

GENERAL SPECIFICATIONS

Rating 40 Tons

Cylinder 4″ Ram

Stroke 12-1/4″

DIMENSIONS

Height 79″

Width 48″

Depth 48″

Shipping Weight 1400 lb
