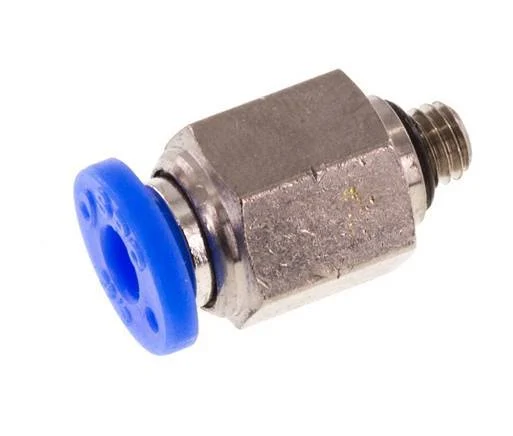

5/32” x UNF 10-32 Push-in Fitting Brass/PBT NBR [5 Pieces]

This is a 2 connection straight push-in fitting. Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. Connection 1 is a 5/32 inch (3.97 mm) push-in port. Connection 2 has UNF 10-32 male threads. The male thread connection has an O-ring seal. The body is made of brass. The connection ports are made of POM and PBT. The seal material is NBR. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from 0 to 60 °C (32 to 140 °F). The push-in fitting is easily installed by pushing the pneumatic tube against the release ring-end of the fitting until it stops, and the internal claw secures it into place. It is easily uninstalled by pushing the release ring inward towards the fitting and pulling the tubing back.

Pros:

• Quick and easy installation and release of pneumatic tubing
• The male thread connection has an O-ring seal
• It can be used for vacuum applications
• This push-in fitting has an outer hexagon for mounting
• This fitting can be used with hoses of imperial size
• Suitable for use with oiled and unoiled compressed air

Specifications

Thread : UNF 10-32
Push-in connection : 5/32 inch (3.97 mm)
Connection type : Outer thread flare (UNF),Push-in
Material : Brass
Seal material : NBR (nitrile rubber)
Min pressure (bar) : -0.95
Max pressure at 20 °C (bar) : 10
Max temperature (°C) : 60
Fitting features : Vacuum,Outer hexagon,With gasket
Type of sealing : O-ring
Material connection 1 : Polyoxymethylene (POM)
Material connection 2 : PBT
Shape : Straight
