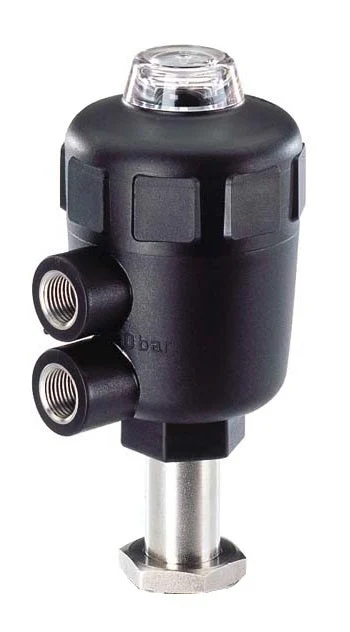

This pneumatic actuator, for series 2012 globe valves, has a PPS housing with a 50 mm size. Normally closed (NC), which means the valve opens when air is applied. Suitable for media temperatures ranging from -10 to 185°C (14 to 365°F).
Pros:
- The actuator is designed for direct mounting of a Burkert 8697 feedback and control unit (not included)
- PPS housing for higher ambient temperatures
Series
The Bürkert type 2012 2/2-way globe valve is a pneumatically actuated on/off valve. The CLASSIC pneumatically operated piston actuator is available in PA, or PPS for higher ambient temperatures. The valve body has been optimized for excellent flow properties and is equipped with a self-adjusting packing gland for added tightness and long-term reliability. These valves are suitable for high viscosity media of up to 600 mm2/s. This valve can be controlled through the use of a pilot valve or through central automation with a valve island. The valve can be fitted with accessories like electrical position feedback, manual override or stroke limitation.
Specifications
Material : PPS
Seal material : Teflon (PTFE)
Function : Normally closed
Max pressure difference at 20 °C (bar) : 11
Min temperature (°C) : -10
Max temperature (°C) : 185
Kv value [m3/h] : 0
Suitable for vacuum : No
Min control pressure (bar) : 4.1
Max control pressure (bar) : 10
Closing against flow : Yes
Actuator material : PPS
Actuator version : Classic
Valve construction : Actuator
Temperature environment min (°C) : 5
Temperature environment max (°C) : 140
Actuator size : 50 mm
Suitable for liquids : Yes
CIP capable : Yes
Control air connection material : Stainless steel
Control air connection position : In line direction
Control air connection type : Inner thread cylindrical BSPP-G
Control cone : No
Main valve operating principle : Globe valve
SIP capable : Yes
Valve bore (mm) : 20
