5×3 & G1/8” Nickel plated Brass Elbow Push-on Fitting with Female Threads [5 Pieces]

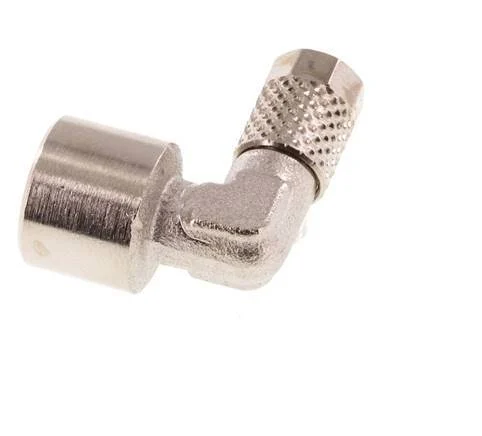

This nickel plated brass elbow push-on fitting is designed with one push-on connection and with one female threaded connection. Connection 1 is a 5×3 mm push-on connection. Connection 2 has G 1/8 inch female threads. The operating pressure corresponds to the pipes or hoses used.

Pros:

• Easy assembly and disassembly with the push-on connection design
• Suitable for neutral and non-corrosive media

Specifications

Thread : 1/8 inch
Push-on connection : 3×5 mm
Connection type : Push-on,Inner thread cylindrical BSPP-G
Material : Brass
Bend angle (°) : 90
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Elbow
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
With drain : No
