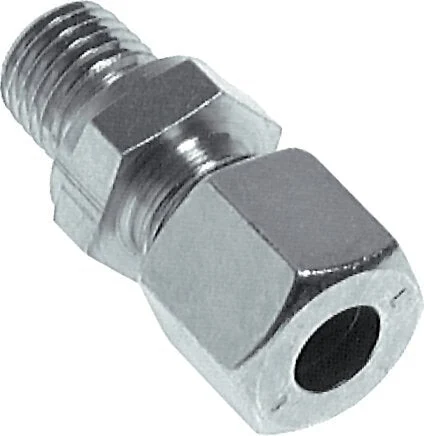

6L & M10x1 Zink plated Steel Straight Cutting Fitting with Male Threads 315 bar NBR ISO 8434-1 [5 Pieces]

This zink plated steel straight screw in connection is designed with one male threaded connection and one cutting ring connection port. Connection 1 is a 6 mm cutting ring with a M12x1.5 union nut. Connection 2 has male M 10×1 threads. It has an elastomer seal. The seal material is NBR. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -35 to 100 °C (-31 to 212 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

• Adheres to DIN EN ISO 8434-1 (DIN 2353)
• It has an elastomer seal
• Suitable for hydraulic applications

Specifications

Thread : M10 x 1
Union nut thread : M12 x 1.5
Load class (DIN 2353) : L (light)
Cutting ring connection (mm) : 6
Connection type : Cutting ring,Outer thread metric
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 315
Min temperature (°C) : -35
Max temperature (°C) : 100
Standard : DIN EN ISO 8434-1 (DIN 2353)
Type of sealing : Elastomer
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic zink plated
With drain : No
