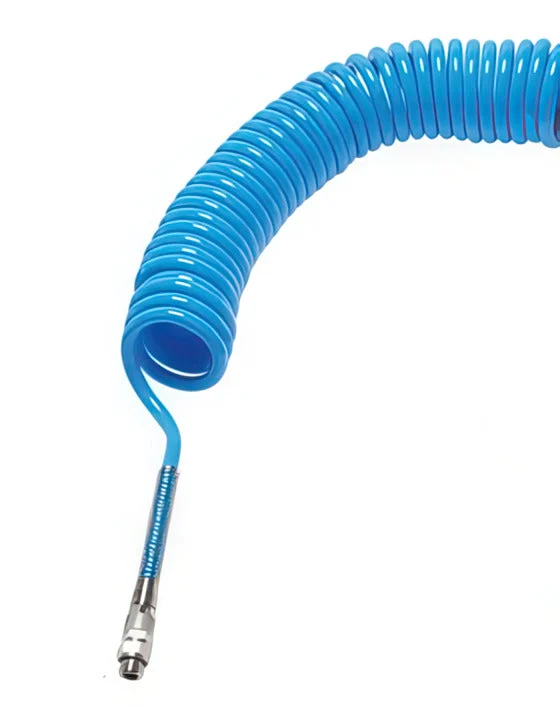

High pressure, premium 5 mm coiled air hose with 1/4 inch outer thread cylindrical BSPP-G (ISO 228-1) connector. It is made of high quality polyurethane (PUR). The hose has a maximum working temperature of 60 °C and a working pressure of 10 bar at 20 °C. Hose has a working length of 6 m. polyurethane tubing is strong, flexible, kink and abrasion resistant, and is fuel and oil resistant. For more information on chemical resistance, please inform our chemical resistance articles.
Pros:
- Flexible
- Cheap solution for pneumatic lines
- Strong, flexible, kink and abrasion resistant.
- Withstands oils and fuels
HL-PUR-COIL series
The pneumatic hose coil series are cost effective high quality polyurethane (PUR) coils. The hoses are suitable for pneumatic lines with cylindrical BSPP-G (ISO 228-1) connections. The series offers hoses with an internal diameter of 4 – 8 mm. The hoses are available at operating lengths of 3, 6 and 8 meter.
Specifications
Internal diameter (mm) : 5
Outer diameter (mm) : 8
Hose material : Polyurethane (PUR)
Max pressure at 20 °C (bar) : 10
Connection size : 1/4 inch
Connection type : Outer thread cylindrical BSPP-G
Hose features : Abrasion resistance
Min temperature (°C) : -20
Max temperature (°C) : 60
Color : Blue
Working length (m) : 6
