6×4 & G1/8” Aluminum Straight Push-on Fitting with Male Threads [5 Pieces]

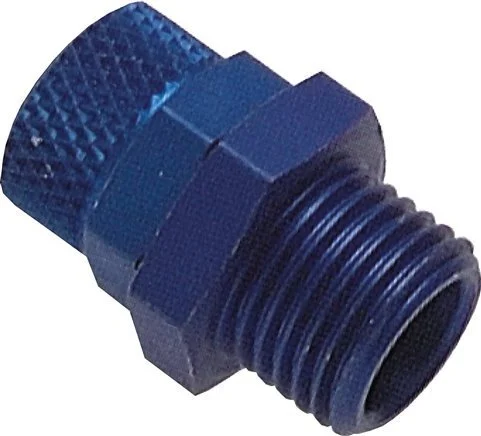

This aluminum straight push-on fitting is designed with one push-on connection and one male threaded connection. Connection 1 is a 6×4 mm push-on connection. Connection 2 has G 1/8 inch male threads. The operating pressure range is -0.99 to 15 bar (-14 to 218 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -15 to 70 °C (5 to 158 °F).

Pros:

• Easy assembly and disassembly with the push-on connection design
• It can be used for vacuum applications

Specifications

Thread : 1/8 inch
Push-on connection : 4×6 mm
Connection type : Outer thread cylindrical BSPP-G,Push-on
Material : Aluminum
Min pressure (bar) : -0.99
Max pressure at 20 °C (bar) : 15
Min temperature (°C) : -15
Max temperature (°C) : 70
Fitting features : Vacuum
Material connection 1 : Aluminum
Material connection 2 : Aluminum
Shape : Straight
With drain : No
