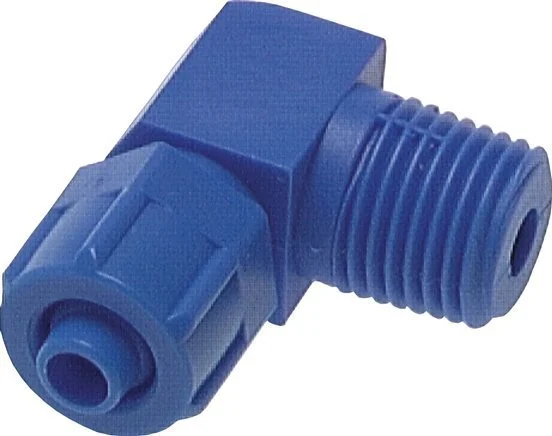

6×4 & R1/4” PVC Elbow Push-on Fitting with Male Threads [10 Pieces]

This PVC elbow push-on fitting is designed with one push-on connection and one male threaded connection. Connection 1 is a 6×4 mm push-on connection. Connection 2 has R 1/4 inch female threads. The operating pressure range is -0.99 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -10 to 60 °C (14 to 140 °F).

Pros:

• Easy assembly and disassembly with the push-on connection design
• It can be used for vacuum applications

Specifications

Thread : 1/4 inch
Push-on connection : 4×6 mm
Connection type : Outer thread conical BSPT-R,Push-on
Material : Plastic
Min pressure (bar) : -0.99
Max pressure at 20 °C (bar) : 10
Min temperature (°C) : -10
Max temperature (°C) : 60
Fitting features : Vacuum
Bend angle (°) : 90
Material connection 1 : Plastic
Material connection 2 : Plastic
Shape : Elbow
With drain : No
