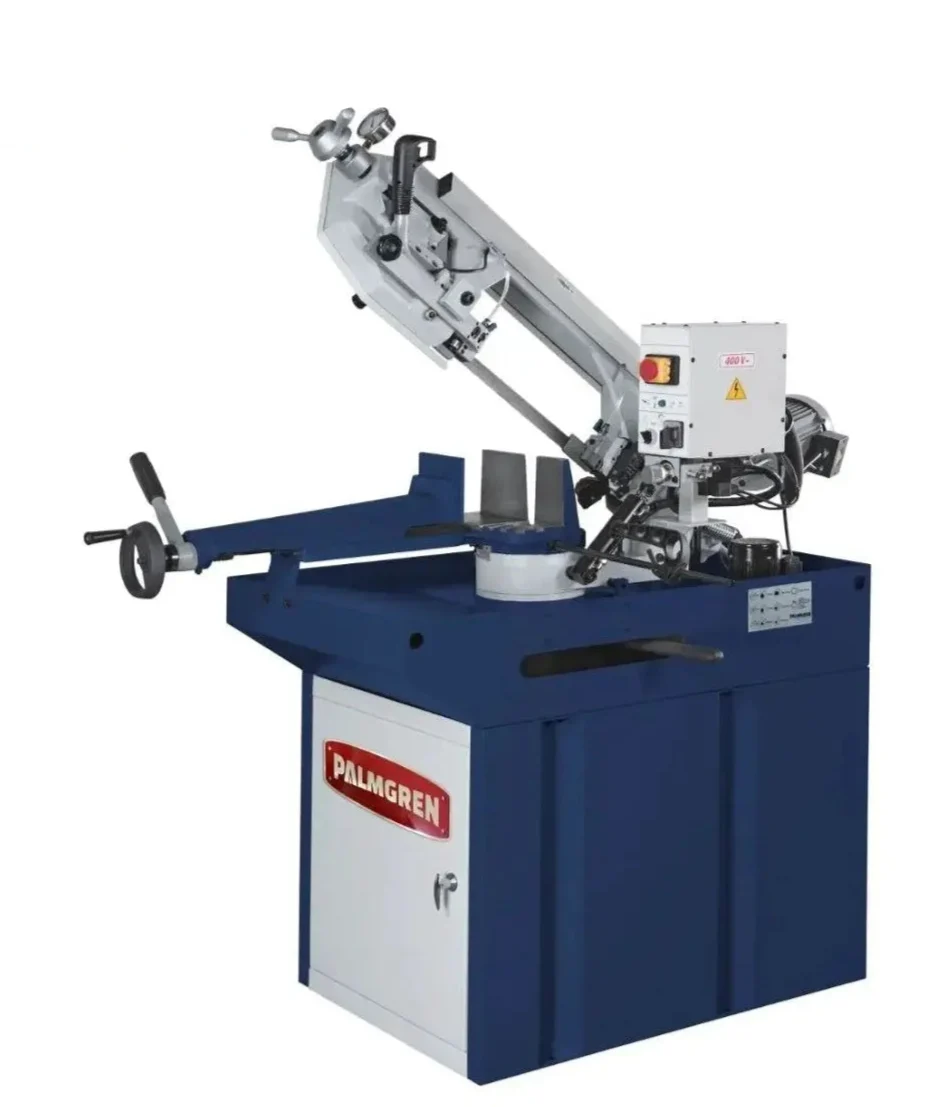

Palmgren’s 8″ Zip-Miter band saw offers extra precision, speed and versatility.
This saw delivers precise, fast cutting on a regular basis and are ideal for cutting ferrous and non-ferrous materials, solids, tubing and sectionals square and accurately. The pivot head design is ideally suited for individual cuts to low volume production cutting applications.
- Choice of manual feed or hydraulic down feed
- Precision machined cast saw head for maximum rigidity and vibration dampening performance
- Advanced direct drive gear box and motor maximizes the power of the motor to the blade
- Gear box utilizes a bronze worm gear and hardened and ground worm shaft in an oil bath
- Twin supported head pivot point utilizing tapper roller bearings guarantees ease of operation and very precise cuts
- Rapid positioning vise allows for fast set-ups and maximum clamping force on the workpiece
- Adjustable zero clearance blade guides utilizing a combination of ball bearing and tungsten carbide pads provide maximum support and ensure square accurate cuts
- Large handwheel with electro-magnetic micro switch preset to insure proper blade tension
- With out proper tension the saw will not start and if the blade loosens or breaks during operation the saw will stop
- Fine adjustment hydraulic down feed control is easily adjusted to fine tune the blade speed to the material being cut
- Flood coolant system with the coolant fed through both blade guides to maximize cooling and cleaning of the chips from the blade
- Adjustable work stop for repetitive cuts
- Solid one piece heavy duty steel base
- Safety electrical package includes overload & low voltage protection, safety spring loaded switch, emergency stop button and two speed motor switch
Specifications
| Band Saw Type | Horizontal |
| Cold Saw and Band Saw Saw Type | Manual |
| Country of Origin | TW |
| Cutting Angle | 0° / 60° |
| Cutting Angle Adjustment | Manual |
| Feed | Hydraulic |
| Machine Weight | 550 lbs |
| Motor HP | 1-1/2 |
| Overall Dimensions (L × W × H) | 53-1/8″ × 28-1/8″ × 58-1/4″ |
| Phase | Single |
| Rectangle @ 0° | 9″ × 7-1/4″ |
| Rectangle @ 60° | 3-1/2″ × 3-7/8″ |
| Round @ 45° | 5-7/8″ |
| Round Material Max. @ 0° | 8-5/8″ |
| Round Material Max. @ 60° | 3-1/2″ |
| Saw Blade Diameter | 97″ × 1″ × 0.035″ |
| Sawing Type | Horizontal Band Saws |
| Voltage | 115 V |
| Warranty | 3 Year |
| UPC | 726896832869 |
| Unit of Measure | EA |
| Product Height (in) | 35.8 in |
| Product Length (in) | 55.5 in |
| Product Width (in) | 27.6 in |
| Product Weight (lbs) | 583 lbs |
