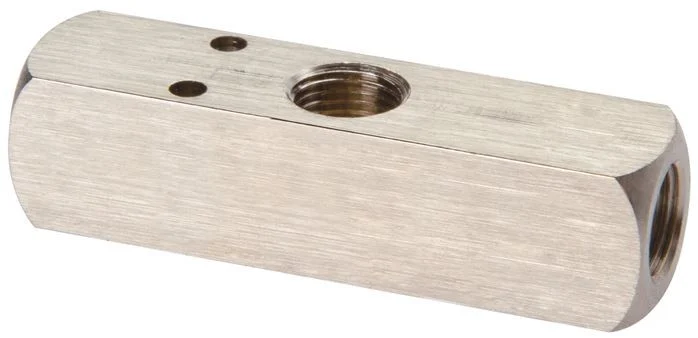

This vacuum generator (also known as vacuum ejector) is designed to generate a vacuum level that is required for pick and place applications of objects and works based on the Venturi effect. The compressed air pressure range is 1 to 10 bar (14.5 to 145 psi), but the optimal pressure is 6 bar (87 psi). At this pressure, the maximum vacuum level is 80% and the air consumption is 13 l/min (0.78 m3/h, 0.46 scfm). The vacuum rate decreases with increasing vacuum levels and is maximally 10 l/min (0.6 m3/h, 0.35 scfm).
This vacuum ejector has three connection ports: a G 1/8 inch supply port, a G 1/8 inch vacuum port and a G 1/8 inch exhaust port. It’s made from nickel-plated brass. Suitable for a temperature range of -40 °C to 120 °C (-40 °F to 248 °F).
Pros:
- Direct mounting onto the application is possible due to the compact design
Cons:
- Silencer not included (recommended)
VEL series
The VEL series generators are single-stage vacuum ejectors. The ejectors from this series can a generate vacuum of up to 94%. Depending on the vacuum level, the vacuum rate varies from 13 to 41.4 l/min (0.78-2.48 m3/h, 0.46-1.45 scfm) and the evacuation time ranges from 1.4-7.3 s. The air consumption range is from 7.2 to 27.6 l/min (0.43-1.66 m3/h, 0.25-0.97 scfm). They have either two push-in connections or three G 1/8 inch ports.
Specifications
Connection size : 1/8 inch
Material : Brass
Max vacuum (%) : 80
Air consumption (l/min) : 13
Max vacuum flow rate (l/min) : 10
Total length (mm) : 54
Max pressure (bar) : 10
Min pressure (bar) : 1
Optimum pressure (bar) : 6
Connection type : Inner thread cylindrical BSPP-G
Max temperature (°C) : 120
Min temperature (°C) : -40
Surface protection : Nickel-plated
