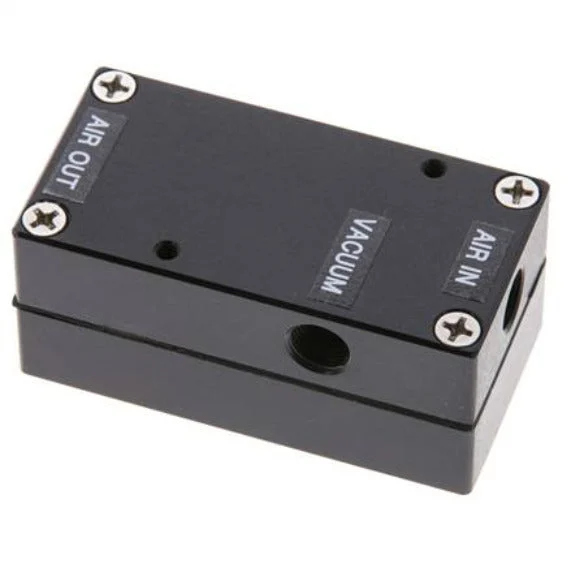

87% 56l/min Multi-stage Vacuum Generator

This vacuum generator (also known as vacuum ejector) is designed to generate a vacuum level that is required for pick and place applications of objects and works based on the Venturi effect. The compressed air pressure range is 1 to 7 bar (14.5 to 101.5 psi), but the optimal pressure is 4 bar (58 psi). At this pressure, the maximum vacuum level is 87% and the air consumption is 32 l/min (1.92 m³/h, 1.12 scfm). The vacuum rate decreases with increasing vacuum levels and is maximally 56 l/min (3.36 m³/h, 1.96 scfm). The evacuation time 1 l to 70% vacuum is 6.4 s. Please see our datasheet for more details about suction rates and evacuation times.

This vacuum ejector has three connection ports: a G 1/8 inch supply port, a G 1/8 inch vacuum port and a G 1/8 inch exhaust port. It’s made from aluminum. Suitable for a temperature range of -20 °C to 100 °C (-4 °F to 212 °F).

Pros:

• Multi-stage ejectors create a much higher suction rate than singlestage with the same amount of compressed air
• Direct mounting onto the application is possible due to the compact design

Cons:

• Silencer not included (recommended)

VEL-M series

The VEL-M series generators are multi-stage vacuum ejectors. The ejectors from this series can a generate vacuum of up to 90%. Depending on the vacuum level, the vacuum rate varies from 28 to 9600 l/min (1.68 to 576 m³/h), 0.98-336 scfm and the evacuation time ranges from 0.044-18 s. The air consumption range is from 16 to 2880 l/min (0.96-172.8 m³/h, 0.56-6.05 scfm). They have three ports one for air supply, second for suction and third for exhaust. A wide range of port sizes is available.

Specifications

Connection size : 1/8 inch
Material : Aluminum
Max vacuum (%) : 87
Seal material : CR (neoprene)
Air consumption (l/min) : 32
Max vacuum flow rate (l/min) : 56
Total length (mm) : 69
Evacuation time 1 liter @ 50% (s) : 2.75
Max evacuation time (s) : 6.4
Max pressure (bar) : 7
Min pressure (bar) : 1
Optimum pressure (bar) : 4
Connection type : Inner thread cylindrical BSPP-G
Max temperature (°C) : 100
Min temperature (°C) : -20
