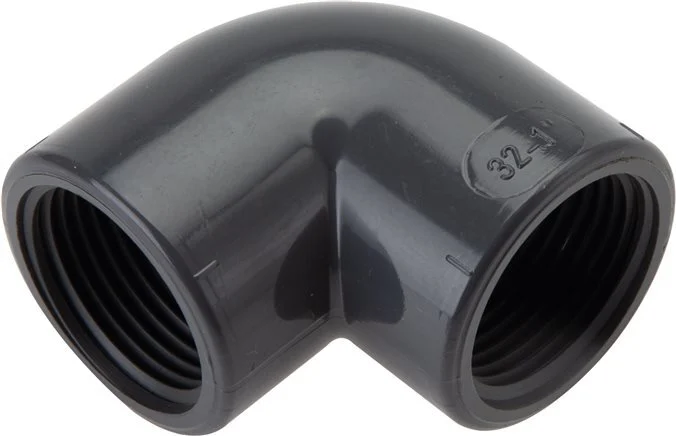

90deg Angled Fitting Rp3/4” Female PVC-U 16bar (224.8psi) EN 1452-3 [5 Pieces]

This 90-degree elbow PVC-U fitting is compliant with the 1452-3 standard and can be used for water supply and for under- and above-ground drainage as well as for sewerage under pressure. The maximum operating pressure is 16 bar (224.8 psi).

Note: If using thread sealant, ensure it does not damage PVC-U.

Cons:

• It cannot be used for compressed air or other gases under pressure

Specifications

Thread : 3/4 inch
Connection type : Inner thread cylindrical BSPT-Rp
Material : PVC-U
External diameter : 34 mm
Max pressure at 20 °C (bar) : 16
Min temperature (°C) : 0
Max temperature (°C) : 60
Standard : EN 1452-3
Length (mm) : 33
Bend angle (°) : 90
Material connection 1 : PVC-U
Material connection 2 : PVC-U
Shape : Elbow
With drain : No
