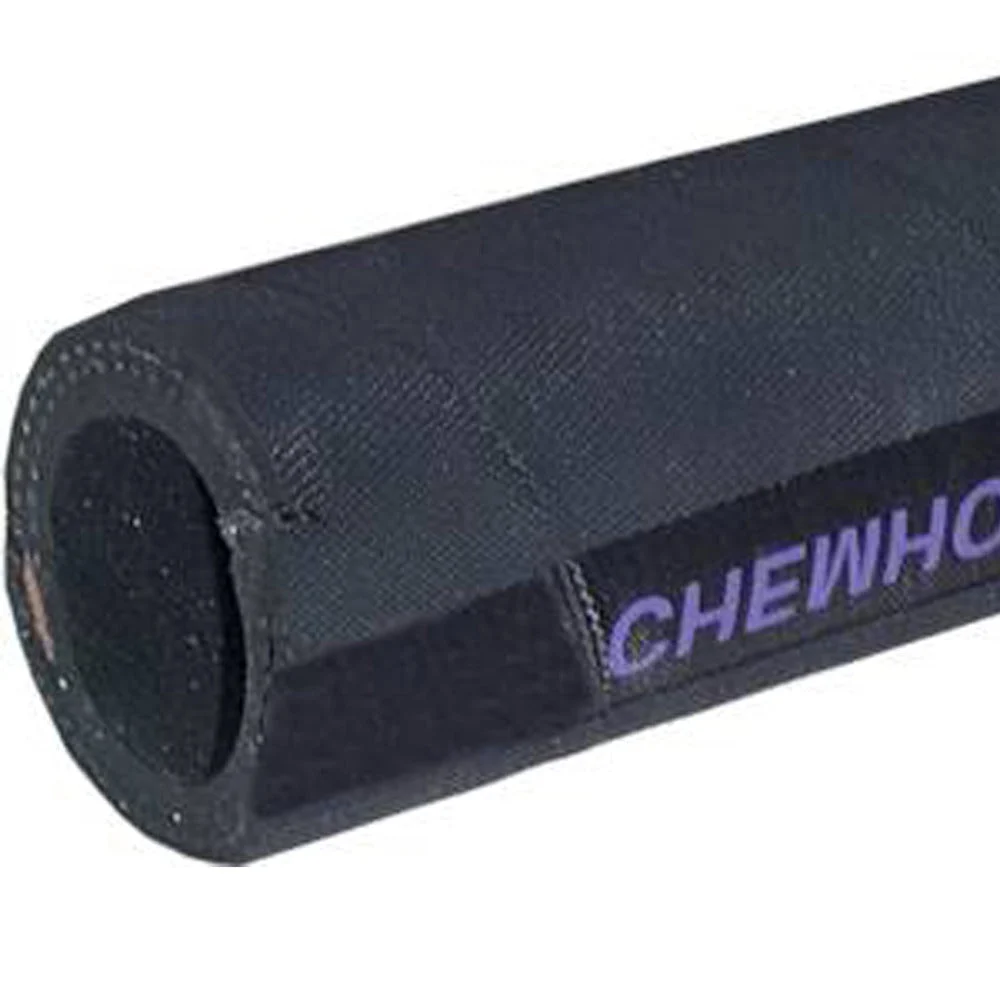

High quality 50 mm Parker acid and alkali resistant pressure hose. The hose is made of EPR with a textile inlay with copper strands, making the hose antistatic. With a large temperature range (-35 °C to 100 °C, chemicals maximum 25 °C) and a working pressure of 16 bar the hose can be used in various industrial applications. For more information on the chemical resistance of the hose please read our chemical resistance table. The hose can be sterilized with steam (temporarily up to 130 °C). The hose has a EPDM cover which ensures UV, ozone and abrasion resistance. This hose is sold at a pre-cut length of 5 m, we also offer rolls with a length of 40 m. Hose conforms to EN 12115 standard.
Pros:
- Can be sterilized with steam (up to 130 °C)
- UV, ozone and abrasion resistance
- Antistatic
- Hose conforms to EN 12115 standard
Cons:
- Not resistant against hydrocarbons, but can be used for strong acids and alkalis
series
The HL-E-C series are high quality acid and alkali resistant pressure hoses available in sizes from 13-50 mm inside diameter. The hoses are UV, ozone and abrasion resistant due to the EPDM outer layer and are available in pre-cut lengths of 1, 3 and 10 meters or as a 40 meter roll.
Specifications
Internal diameter (mm) : 50
Outer diameter (mm) : 66
Hose length (m) : 5
Hose material : EPR
Max pressure at 20 °C (bar) : 16
Hose features : Abrasion resistance,Weather resistance
Approval : Chemicals
Standard : EN 12115
Min temperature (°C) : -35
Max temperature (°C) : 100
Outer wall material : EPDM
Bursting pressure (bar) : 64
Roll length (m) : 40
Number of inlays : 1
Inlay material : Textile
Outside wall color : Black
