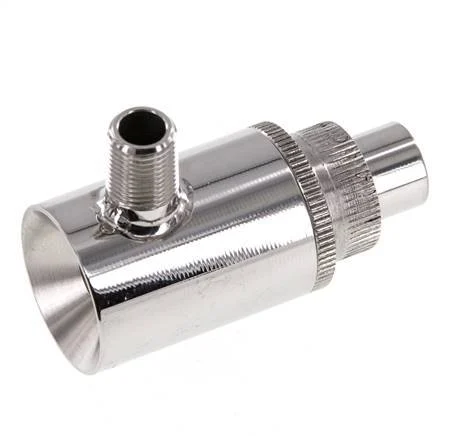

This is an adjustable air amplifier with a 13 mm outlet made out of stainless steel. It has an R 1/8″ male threaded input. It can function like a vacuum, fan or blower to vacuum or blow out debris, gases, granules and fiber materials. To be used only with filtered and unoiled compressed air. The air comes in through a significantly larger 25 mm hole and comes through a 13 mm outlet port amplified thanks to the reduction of the hole diameter.
Pros:
- Installed where powerful air flow outputs with minimal compressed air consumption are needed, at low pressures
- Suitable for operating pressures from 1 to 10 bar, optimally 5 bar
- Easily adjustable pressure and air flow
- No maintenance or component wear
- High pressure nozzle with a narrow concentrated air output
Specifications
Air inlet device-sided : R 1/8 inch
Air volume required (l/min) : 700
Max. operation pressure (bar) : 10
Min operation pressure (bar) : 1
Nozzle material : Stainless steel
Nozzle bore (mm) : 13
Min temperature (°C) : -20
Max temperature (°C) : 120
