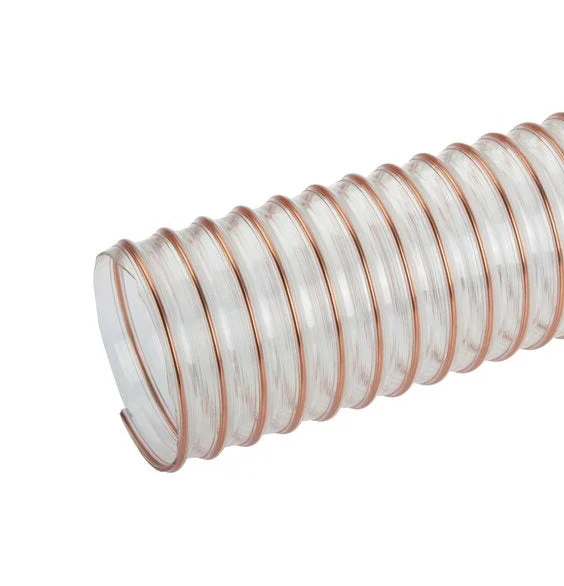

High quality 125 mm antistatic pressure and suction hose. The hose is made of polyurethane (pur) with a high tensile strength With a temperature range of -40 °C to 90 °C, an operating pressure of 0.19 bar and a maximum vacuum pressure of -0.08 bar an ideal hose for irrigation and drainage projects in industry, agriculture and horticulture. High tear and abrasion resistance, high elasticity and ageing resistance. No plasticizer used during manufacturing, resistant to solvents, oils, grease, wax and fuels. The transparency helps to monitor the working processes effectively. This hose is sold at a pre-cut length of 3 m, we also offer rolls with a length of 15 m. Hose conforms to DIN 4102 B1 standard.
Pros:
- Suitable for both suction and pressure applications due to high tensile-strength steel-wire spiral
- PU hose is more abrasion resistant than common plastics/rubbers
- Permanent antistatic
- Hydrolysis and microbe resistant
- High temperature range (temperature range of °C to 90 °C)
- Transparency allows optical inspection of the process during operation
- Hose conforms to DIN 4102 B1 standard
Cons:
- Maximum working pressure of 0.19 bar
HL-PUR-L series
The HL-PUR-L series are high quality pressure and suction hoses available various sizes. The hoses are antistatic, transparent and suitable for both pressure and suction applications. They are available in pre-cut lengths of 1, 3 and 5 meters or as a 15 meter roll.
Specifications
Internal diameter (mm) : 125
Outer diameter (mm) : 132
Hose length (m) : 3
Hose material : Polyurethane (PUR)
Max pressure at 20 °C (bar) : 0.19
Hose features : Antistatic,Abrasion resistance,Flame resistance,Hydrolysis resistance
Standard : DIN 4102 B1
Min temperature (°C) : -40
Max temperature (°C) : 90
Bending radius (mm) : 88
Roll length (m) : 15
Max. negative pressure (bar) : -0.08
Spiral material : Steel
