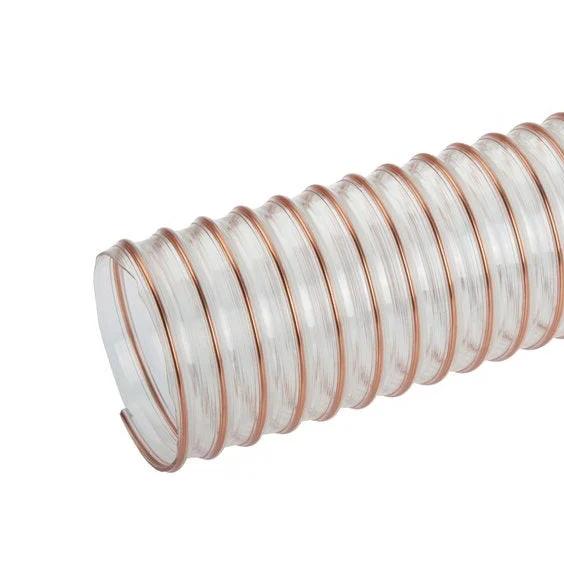

High quality 30 mm antistatic pressure and suction hose. The hose is made of polyurethane (pur) with a high tensile strength With a temperature range of -40 °C to 90 °C, an operating pressure of 1.6 bar and a maximum vacuum pressure of -0.4 bar an ideal hose for irrigation and drainage projects in industry, agriculture and horticulture. High tear and abrasion resistance, high elasticity and ageing resistance. No plasticizer used during manufacturing, resistant to solvents, oils, grease, wax and fuels. The transparency helps to monitor the working processes effectively. This hose is sold on a roll of 10 m, we also offer pre-cut lengths. Hose conforms to DIN 4102 B1~Regulation (EC) 1935/2004~Regulation (EU) 10/2011~FDA 21 CFD 175.300 standard.
Pros:
- Suitable for both suction and pressure applications due to high tensile-strength steel-wire spiral
- PU hose is more abrasion resistant than common plastics/rubbers
- Permanent antistatic
- Hydrolysis and microbe resistant
- High temperature range (temperature range of °C to 90 °C)
- Transparency allows optical inspection of the process during operation
- Suitable for food-grade applications
- Hose conforms to DIN 4102 B1~Regulation (EC) 1935/2004~Regulation (EU) 10/2011~FDA 21 CFD 175.300 standard
Cons:
- Maximum working pressure of 1.6 bar
HL-PUR-F-H series
The HL-PUR-F-H series are high quality pressure and suction hoses available various sizes. The hoses are antistatic, transparent and suitable for both pressure and suction applications. They are available in pre-cut lengths of 1, 3 and 5 meters or as a 10 meter roll.
Specifications
Internal diameter (mm) : 30
Outer diameter (mm) : 37
Hose length (m) : 10
Hose material : Polyurethane (PUR)
Max pressure at 20 °C (bar) : 1.6
Hose features : Antistatic,Abrasion resistance,Flame resistance,Hydrolysis resistance
Approval : Food-grade
Standard : DIN 4102 B1,Regulation (EC) 1935/2004,Regulation (EU) 10/2011,FDA 21 CFD 175.300
Min temperature (°C) : -40
Max temperature (°C) : 90
Bending radius (mm) : 45
Roll length (m) : 10
Max. negative pressure (bar) : -0.4
Spiral material : Steel
