ATLAS PLATINUM 14000 LB CERTIFIED 4-POST LIFT ATEAP-PVL14

Features & Benefits:

• ALI Certified Lift
• 14,000 lb. Capacity
• Heavy Duty, Commercial Grade
• Extra Tall, Extra Wide & Extra Long
• Adjustable Lock Ladder Design
• Higher Quality Powder Coat Finish
• Air Operated Single Point Lock Release
• Lock Ladder Design
• Double Lock Safety System
• Powder Coat Finish
• Steel Approach Ramps Included
• Mounting Hardware Included
• Standard with Premium ALLY Powerunit
• 220volt/1phase Electric Operation (equires a 30amp Breaker)
• 5 Year Structural/2 Year Hydraulic Warranty/2 Year Powerunit Warranty
• Shipping Weight: 2,800 lbs.
• This part number Will Call only
• AP-PVL14 (Manufacturers Part #)

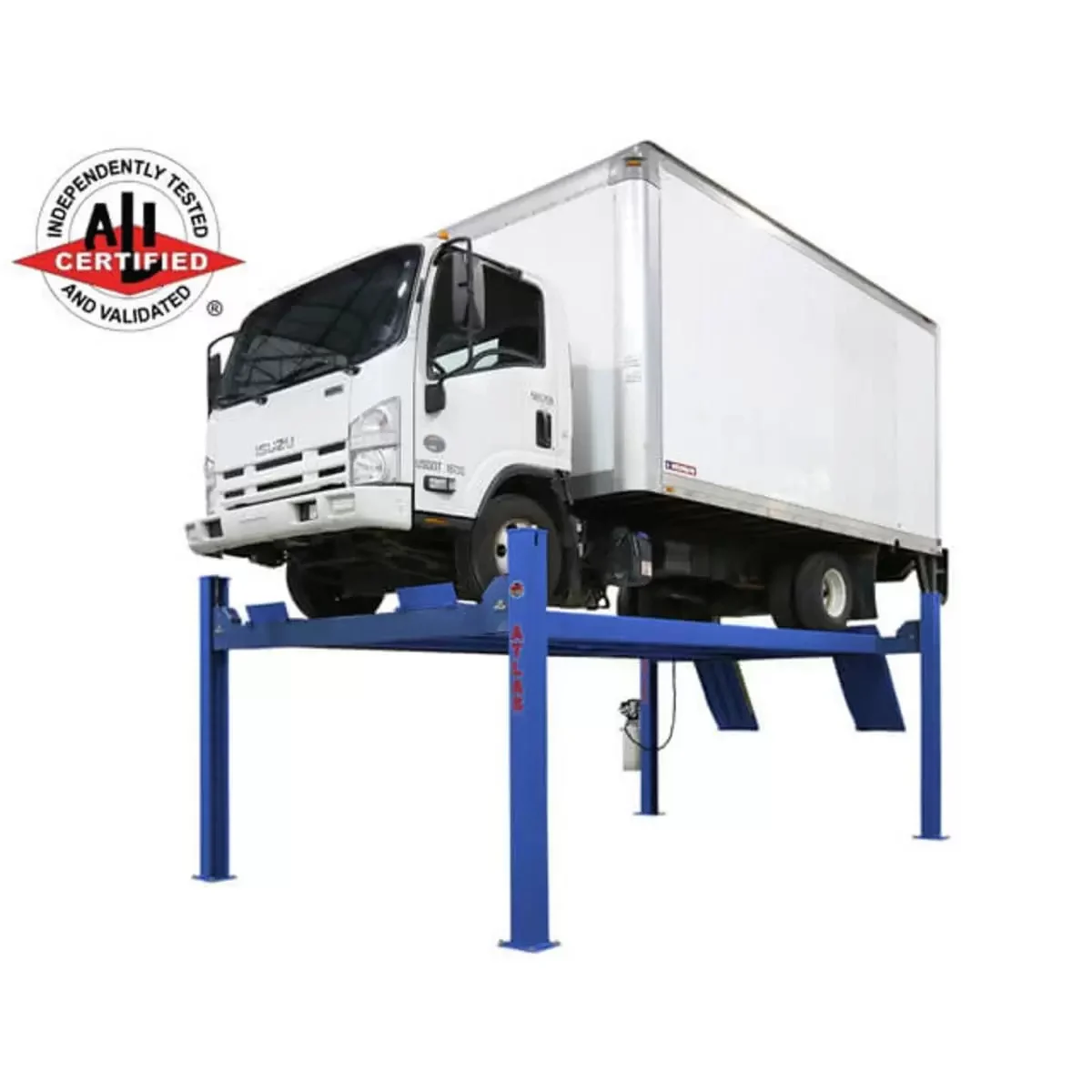

The Atlas® Platinum AP-PVL14 is a four post commercial grade Heavy-Duty lift designed with the professional shop in mind. This lift can accommodate a variety of cars, vans, SUVs, trucks, and even some light & medium duty commercial vehicles.

The Platinum AP-PVL14 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.

The Atlas® Platinum AP-PVL14 features “tracks” between the runways to allow the use of a rolling bridge jack (recommended is the Atlas® Platinum RJ7000) on the lift. Rolling jacks sold separately.

The Atlas® Platinum AP-PVL14 is also ALI certified and backed by one of the industry’s best warranties for an added peace of mind.

The AP-PVL14 comes with a premium ALLY Hydraulic power unit. These units are certified by MET Laboratories to meet UL201 compliance standards. The ALLY power unit also features:

• 2.1 Gallons per Minute flow rate
• 208 – 230 volt single phase (60 Hz).
• 2 hp 3450 rpm motor (3.5 hp motor torque equivalent).
• 3.5 – Gallon opaque high-density plastic tank
• Pressure settings from 2300 to 3500 PSI.
• Extra-large junction box for easy installation
• Extra Heavy-Duty Honeywell BE22Q1-AL off/on switch.
• 2 Year Warranty included

  Atlas® AP-PVL14 Specifications::

  • Capacity: 14000 lbs
  • Lifting Height, Top of Runway: 76 1/2″ (6′ 4 1/2″)
  • Clearance Under Runways: 69 1/2″ (5′ 9 1/2″)
  • Height of Columns: 92 1/2″ (7′ 8 1/2″)
  • Overall Width: 131 3/4″ (10′ 11 3/4″) w/ motor 140 1/2″ (11′ 8 1/2″)
  • Overall Length w/ Ramps: 251 1/2″ (20′ 11 1/2″)
  • Runway Length: 205 1/2″ (17′ 1 1/2″)
  • Runway Width: 20″
  • Runway Thickness: 5 5/8″
  • Width Between Runways: 47″ w/ Rail 43 1/2″
  • Outside Runway to Outside Runway: 83″ (6′ 11″)Clearance Between Columns: 116 3/8″ (9′ 8 3/8″)
  • Length Between Columns: 196 ” (16′ 4″)
  • Drive Thru: 94 1/2″ (7′ 10 1/2″)
  • Motor/Electrical Requirement: 220volt/1phase, 30 amp breaker required
  • Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
  • Shipping Weight: 2800 lbs
