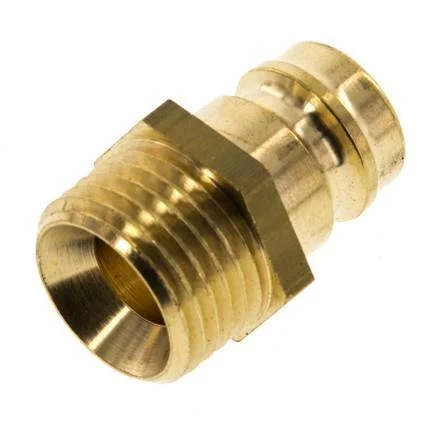

Brass DN 9 Mold Coupling Plug M16x1.5 Male Threads [5 Pieces]

Brass DN 9 mold coupling plug with M16x1.5 male threads. They are typically used for liquid lines to quickly connect and disconnect secure connections.

The M16x1.5 mm male threads allow for it to be threaded onto a matching female threaded part. The operating pressure range is 0 to 15 bar (0 to 218 psi). The coupling is suitable for temperatures between -20 to 160 °C (-4 to 320 °F).

Suitable for: For liquid media with temperatures up to +160 °C, e.g. for cooling circuits on plastic processing machines (+200 °C on request).

Pros:

• Mold quick release couplings are developed for use with cooling or heating lines and resistance high temperature up to +160 °C

Specifications

Connection size : M16 x 1.5
Nominal diameter (mm) : 9
Plug diameter : 13 mm
Connection type : Outer thread metric
Material : Brass
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 15
Min temperature (°C) : -20
Max temperature (°C) : 160
Min pressure (bar) : 0
Compatible models : Hasco Z81/13/16×1.5
Shape : Plug (male)
Sleeve material : Brass
With dust cap : No
