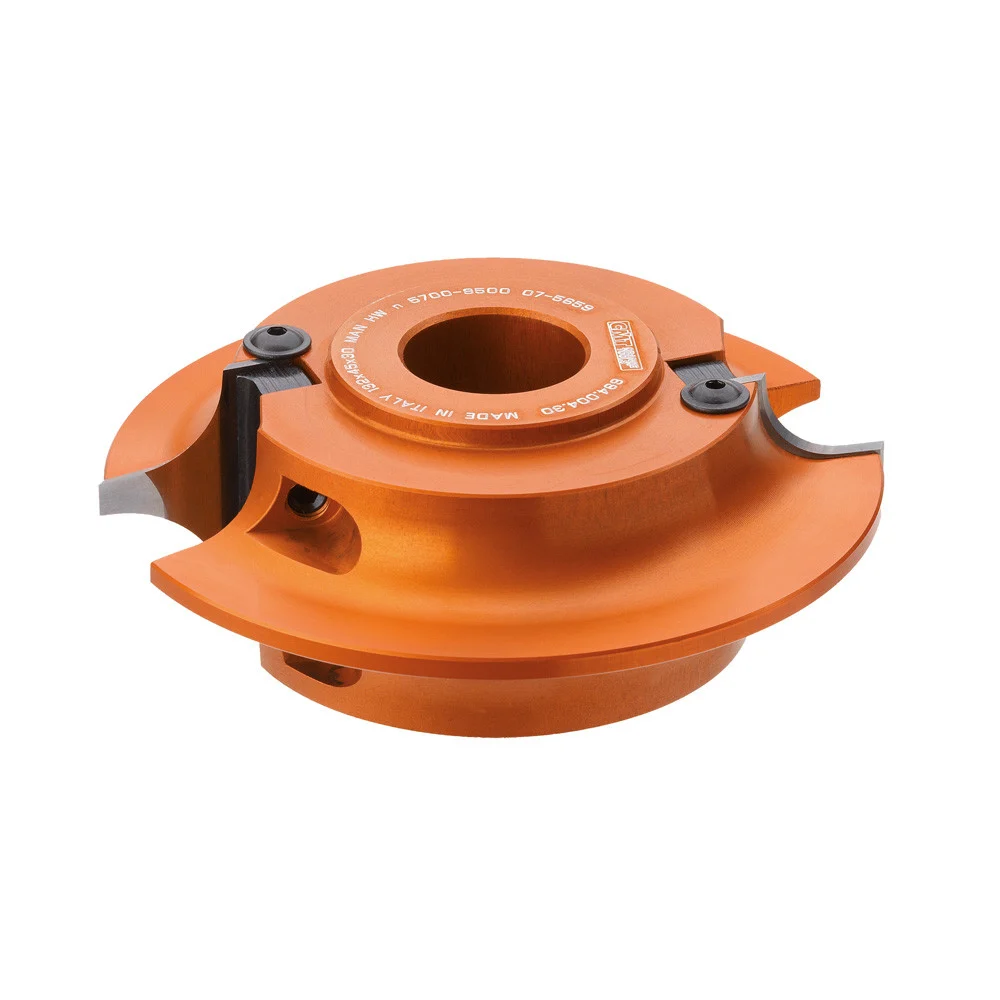

CMT 694.004.31,5” + 3/16”, Multiradius Roundover Cutter Heads

Innovative cutter heads supporting two different knives for making four radius roundover profiles.
Standard cutter heads are sold with knives featuring radii 15 and 20mm; one more knife set is available for radii 12-18mm.
For use on spindle moulder machines, double-end tenorer and shaper machines.
Suitable for all materials, but ideal on solid wood and panel materials.
  TECHNICAL DETAILS:

•  Hard aluminium alloy body with high resistance to tensile and yield stress.
•  2 HWM knives radius 15/20mm (45×34,5x2mm) [Z2].
•  Tools for manual feed (MAN).
•  Pins for the automatic positioning of the knives.


SUPPLIED IN A SOLID PLASTIC BOX.   Bore Diameter: 1” + 1/4”
