Innovative design, simple assembly and countless possibilities.

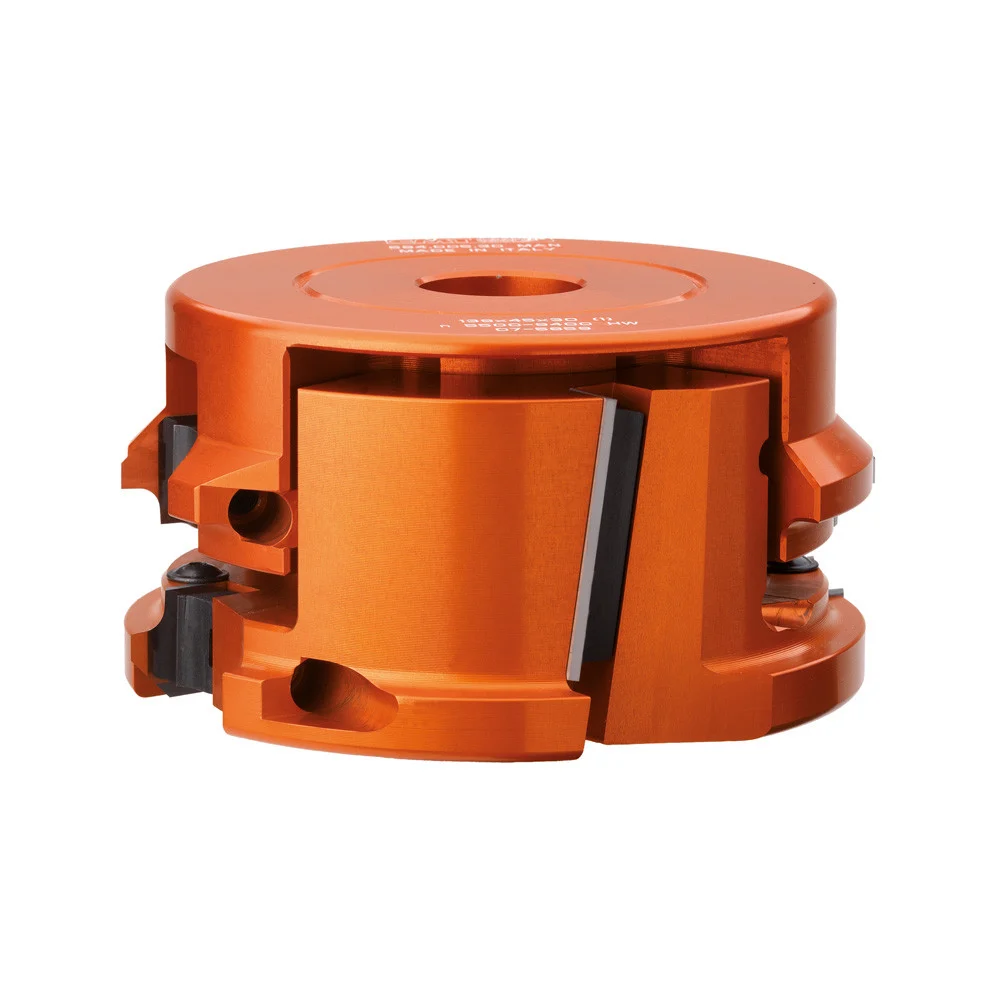

The CMT adjustable rounding and chamfering sets consist of two pieces, which are very easy to set up on your splindle moulder machine, allowing you to profile on solid wood and synthetic boards (with or without coating).
Includes five different knives for rounding over top and bottom edges in one single pass with a radius of 2, 3, 4, 5 or 6mm and for 45° chamfering on material 18mm to 50mm in thickness. The improved design with shear angle guarantees perfect finishing!
For use on spindle moulder machines and double-end tenorers.
TECHNICAL DETAILS:
- Hard aluminium alloy body with high resistance to tensile and yield stress.
- One pair of HWM top knives radius 4mm and 45° chamfer (20×20,5x2mm) [Z2].
- One pair of HWM bottom knives radius 4mm and 45° chamfer (20×20,5x2mm) [Z2].
- Two HWM knives 50x12x1,5mm.
- Set of 21 spacer rings from 0,1 to 3mm.
- Tools for manual feed (MAN).
- Pins for the automatic positioning of the knives.
SUPPLIED IN A SOLID PLASTIC BOX. Bore Diameter: 1” + 1/4”
