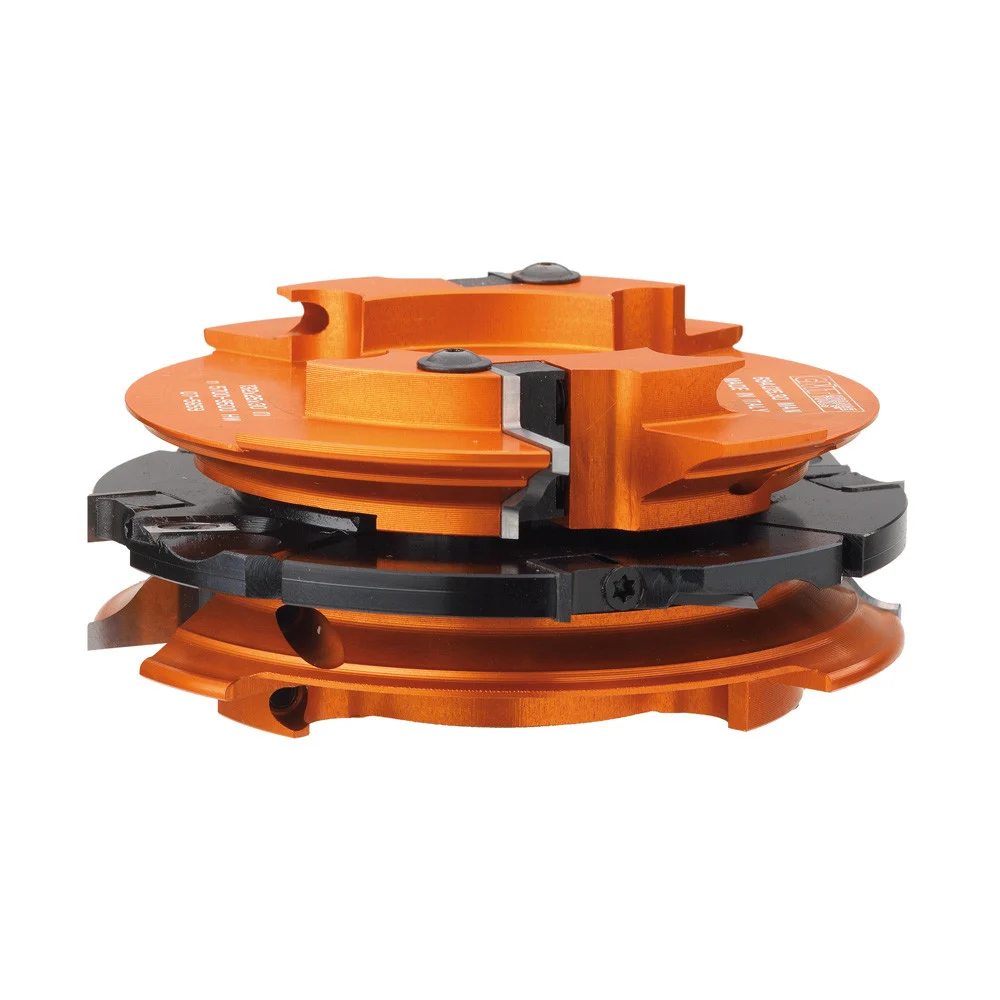

CMT 694.015.31, 5” + 3/16” , Profile And Counter Profile Cutter Head Sets

These versatile sets were designed to make furniture and doors on soft and hardwood.
It allows the insertion of five different knives to produce the most popular and classical profiles.
The adjustable cutter, included in the set, can also be used individually to carry out grooves between 8mm 15mm thick. For use on spindle moulders.
Perfect on solid wood and panels maximum 48mm (1-7/8”) in thickness.
  TECHNICAL DETAILS:

•  Hard aluminium alloy body with high resistance to tensile and yield stress for cutter heads (1 & 2).
•  Super-strength steel body for cutter head (3).
•  2 HWM knives type (A1) 25×29,8x2mm [Z2].
•  2 HWM knives type (A2) 25×29,8x2mm [Z2].
•  4 HWM knives 7,65x12x1,5mm [Z4].
•  4 HWM knives 14x14x2m for heads type (1 & 2).
•  12 spacer rings from 0,1 to 3mm for heads type (1 & 2).
•  12 spacer rings from 0,1 to 2mm for heads type (3).
•  Tools for manual feed (MAN).
•  Pins for the automatic positioning of the knives.

  SUPPLIED IN A SOLID PLASTIC BOX.   Bore Diameter: 1” + 1/4”
