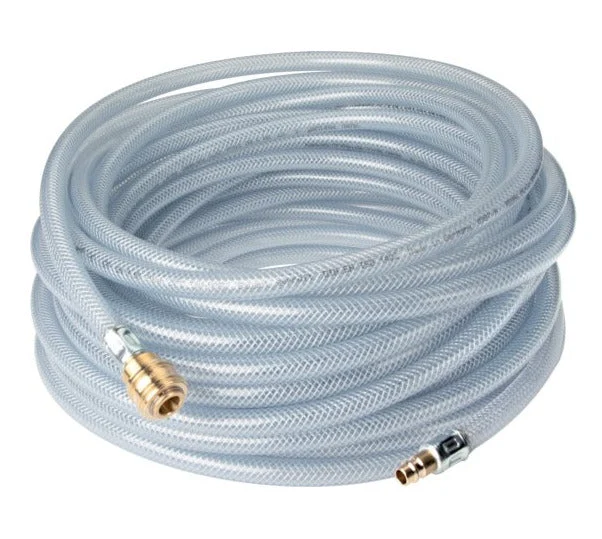

The compressed air hose from Rehau is a high-quality and durable high-pressure hose with built-in couplings and a DN 7.2 coupling to connect it to your compressor and pneumatic tools and machines. The hose has a length of 5 m and is suitable for pressures up to 16 bar. It comes in a Clear colour and can be operated in temperatures from -10 °C to 60 °C. The flexibility of this hose improves the usability.
Pros:
- Due to the length of 5 m the hose is ideal to use in workshops.
- The hose is very fleixble and has a inner diameter of 13 mm and an outer diameter of 20 mm.
- The high tensile-strength textile inlays make the hose suitable for pressures up to 16 bar.
- TÜV certified
series
The HL-PVC-FW series hoses are high-quality compressor hoses with built-in DN7.2 connections. They are available in clear and green colour. The clear hoses have a regular DN7.2 compressed air connection while the green hoses have a DN7.2 safety connection. Both hoses are available between 5 and 25 m working length. Both the clear and green hoses are TÜV certified.
Specifications
Internal diameter (mm) : 13
Outer diameter (mm) : 20
Hose length (m) : 5
Hose material : Polyvinyl chloride (PVC)
Max pressure at 20 °C (bar) : 16
Connection type : Euro coupling DN 7.2
Approval : Food-grade,TUV certification not available
Min temperature (°C) : -10
Max temperature (°C) : 60
Outer wall material : Polyvinyl chloride (PVC)
Roll length (m) : 5
Number of inlays : 1
Inlay material : Textile
Outside wall color : Clear
