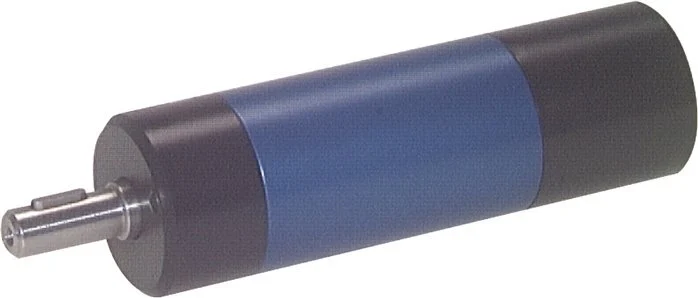

Compressed Air Vane Motor Non-Reversible Clockwise Rotation L300W/7rpm

This non-reversible, clockwise rotation, not non-stalling compressed air vane motor has a nominal performance of 300 W. It is suitable for compressed air at temperatures from 10 to 40°C and a maximum ambient temperature of 60°C. Air consumption at maximum performance is 440 l/min, with nominal speed of 7 rpm at a maximum permisible torque of 25 Nm. It has a length of 247 mm.

It delivers a minimum starting torque of 25 Nm.

Pros:

• ATEX conform design EX II 2G c T4

Specifications

Max actuator torque (nm) : 25
Idle rotational speed (1/min) : 7
Construction : Straight
Air volume required (l/min) : 440
Power output (W) : 300
Nominal rotational speed (1/min) : 6.89
Machine weight (kg) : 1
