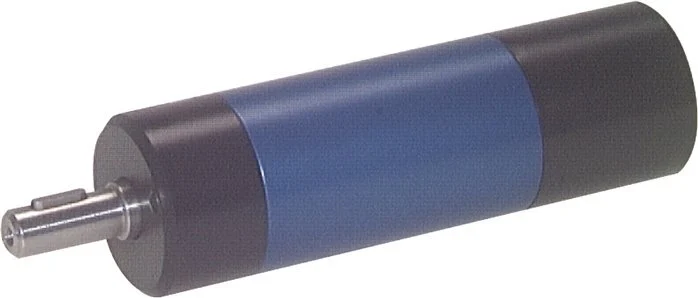

Compressed Air Vane Motor Non-Reversible Clockwise Rotation Stall-Resistant 300W/1340rpm

This non-reversible, clockwise rotation, non stalling compressed air vane motor has a nominal performance of 300 W. It is suitable for compressed air at temperatures from 10 to 40°C and a maximum ambient temperature of 60°C. Air consumption at nominal performance is 380 l/min, with nominal speed of 1340 rpm and a nominal torque of 2.1 Nm. It has a length of 145 mm.

It delivers a minimum starting torque of 3.2 Nm.

Pros:

• ATEX conform design EX II 2G c T4

Specifications

Max actuator torque (nm) : 1.2
Idle rotational speed (1/min) : 2680
Construction : Straight
Air volume required (l/min) : 380
Power output (W) : 300
Stall resistant : Yes
Nominal rotational speed (1/min) : 1340
Machine weight (kg) : 0.5
