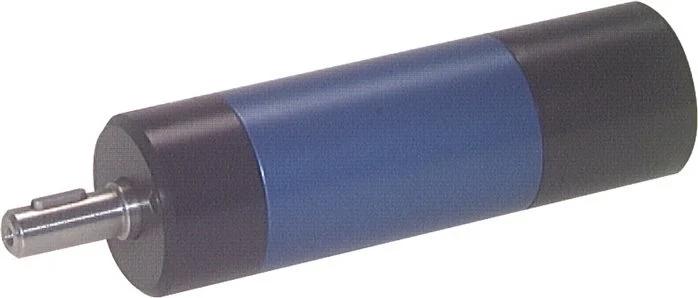

Compressed Air Vane Motor Non-Reversible Clockwise Rotation Stall-Resistant 300W/180rpm

This non-reversible, clockwise rotation, non stalling compressed air vane motor has a nominal performance of 300 W. It is suitable for compressed air at temperatures from 10 to 40°C and a maximum ambient temperature of 60°C. Air consumption at nominal performance is 380 l/min, with nominal speed of 180 rpm and a nominal torque of 15.9 Nm. It has a length of 179 mm.

It delivers a minimum starting torque of 23.9 Nm.

Pros:

• ATEX conform design EX II 2G c T4

Specifications

Max actuator torque (nm) : 11.5
Idle rotational speed (1/min) : 360
Construction : Straight
Air volume required (l/min) : 380
Power output (W) : 300
Stall resistant : Yes
Nominal rotational speed (1/min) : 180
Machine weight (kg) : 0.6
