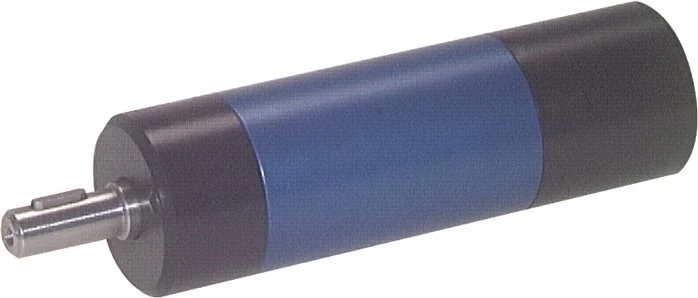

Compressed Air Vane Motor Reversible Not Stall-Resistant L180W/7rpm

This non-reversible, clockwise rotation, non stalling compressed air vane motor has a nominal performance of 180 W. It is suitable for compressed air at temperatures from 10 to 40°C and a maximum ambient temperature of 60°C. Air consumption at nominal performance is 380 l/min, with nominal speed of 7 rpm and a nominal torque of 25 Nm. It has a length of 247 mm.

It delivers a minimum starting torque of 25 Nm.

Pros:

• ATEX conform design EX II 2G c T4

Specifications

Max actuator torque (nm) : 25
Idle rotational speed (1/min) : 7
Construction : Straight
Air volume required (l/min) : 380
Power output (W) : 180
Reversible : Yes
Nominal rotational speed (1/min) : 3.5
Machine weight (kg) : 1
