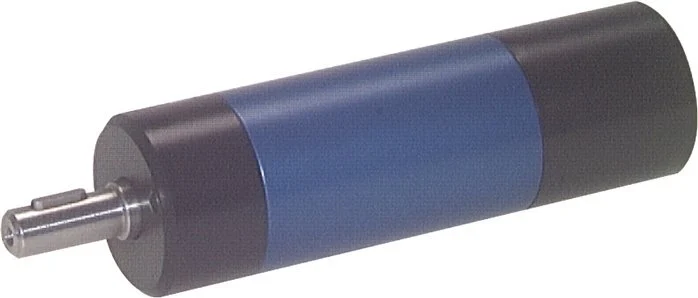

Compressed Air Vane Motor Reversible Stall-Resistant 180W/175rpm

This reversible, stall-resistant compressed air vane motor has a nominal performance of 180 W. It is suitable for compressed air at temperatures from 10 to 40°C and a maximum ambient temperature of 60°C. Air consumption at nominal performance is 330 l/min, with nominal speed of 175 rpm and a nominal torque of 9.8 Nm. It has a length of 179 mm.

It delivers a minimum starting torque of 14.7 Nm.

Pros:

• This motor is reversible
• It is stall resistant
• ATEX conform design EX II 2G c T4

Specifications

Max actuator torque (nm) : 7
Idle rotational speed (1/min) : 350
Construction : Straight
Air volume required (l/min) : 330
Power output (W) : 180
Reversible : Yes
Stall resistant : Yes
Nominal rotational speed (1/min) : 175
Machine weight (kg) : 0.6
