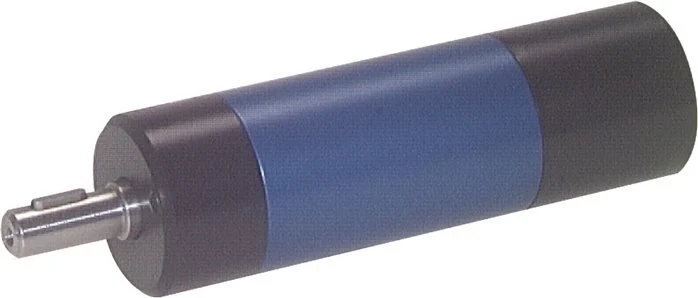

Compressed Air Vane Motor Reversible Stall-Resistant 180W/560rpm

This reversible, stall-resistant compressed air vane motor has a nominal performance of 180 W. It is suitable for compressed air at temperatures from 10 to 40°C and a maximum ambient temperature of 60°C. Air consumption at nominal performance is 330 l/min, with nominal speed of 560 rpm and a nominal torque of 3.1 Nm. It has a length of 179 mm.

It delivers a minimum starting torque of 4.6 Nm.

Pros:

• This motor is reversible
• It is stall resistant
• ATEX conform design EX II 2G c T4

Specifications

Max actuator torque (nm) : 3.1
Idle rotational speed (1/min) : 1120
Construction : Straight
Air volume required (l/min) : 330
Power output (W) : 180
Reversible : Yes
Stall resistant : Yes
Nominal rotational speed (1/min) : 560
Machine weight (kg) : 0.6
