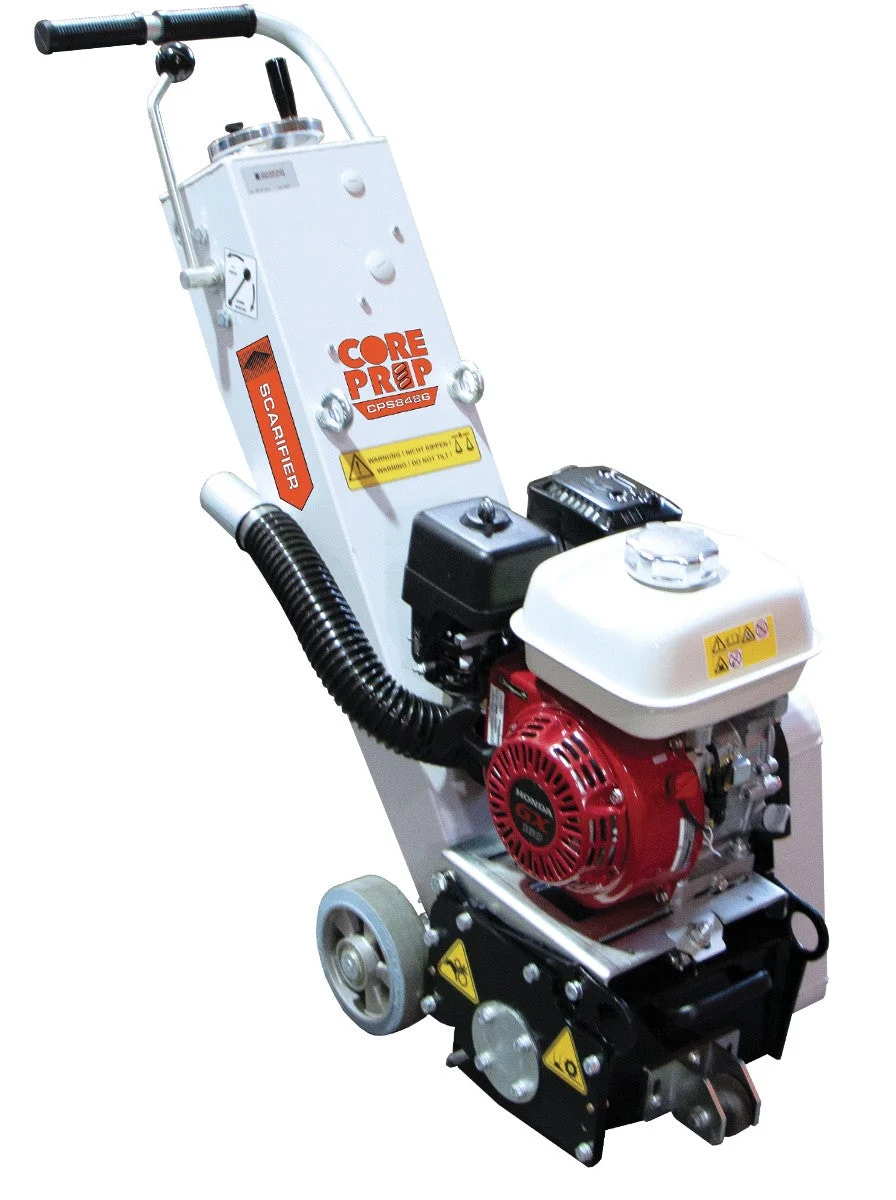

The Core Prep Scarifiers give you the option of a gas engine or electric motor which gives you the flexibility for construction sites with or without power supply.
The main applications include surface texturing, scarifying, planing, grooving, cleaning, descaling and removal of road markings.
FEATURES:
- Gas or electric options
- Height adjustment by hand wheel
- Quick lift lever
- Easy to maneuver
- Belt tensioner with durable toothed belt
- Vacuum connection
| CPS83E1 and CPS848G SPECIFICATIONS | ||
| Model | CPS83E1 Electric (Push) | CPS848G Gas (Self-Propelled |
| Power | 230V / 60Hz / 1PH / 3HP | 4.8 HP |
| Milling Width | 8″ | 8″ |
| Tool Speed | 1750 RPM | 1917 RPM |
| Vacuum Connection | 2″ | 2″ |
| Application | Dry/wet | Dry/wet |
| Length | 39.3″ | 39.3″ |
| Width | 14.56″ | 14.56″ |
| Height | 39.3″ | 39.3″ |
| Weight | 134 lbs. | 134 lbs. |
| CPS1320E3 and CPS1335G SPECIFICATIONS | |||
| Model | CPS1320E3 Electric (Self-Propelled) | CPS1335G Gas (Self-Propelled) | CPS1325LCE3 Electric Low Chassis (Self-Propelled) |
| Power | 460V / 60Hz / 3PH / 20 HP | 35 HP | 460V / 60Hz / 3PH / 25HP |
| Milling Width | 12-1/2″ w/diamond, 13-1/2″ w/drum | 12-1/2″ w/diamond, 13-1/2″ w/drum | 12-1/2″ |
| Vacuum Connection | 2-3/4″ | 2-3/4″ | 2-3/4″ |
| Application | Dry | Dry | Dry |
| Length | 46-1/2″ | 46-1/2″ | 46-1/2″ |
| Width | 25″ | 26″ | 25″ |
| Height | 38-1/2″ | 43-1/4″ | 38-1/2″ |
| Weight | 652 lbs. | 588 lbs. | 652 lbs. |
