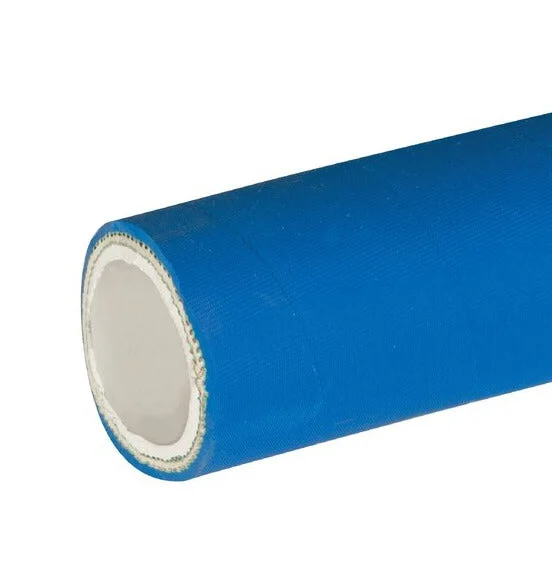

High quality 13 mm dairy & milk hose. The hose is made of NBR (nitrile rubber) with a high tensile strength textile wire coil insert as a pressure support. With a temperature range of -35 °C to 164 °C and an operating pressure of 18 bar an ideal hose for conveying milk, dairy, animal fats and vegetable oils from and to processing points in the agricultural and food industry. High tear, abrasion and ageing resistance. The outer layer of the hose is grease and oil resistant. No plasticizer used during manufacturing. The hose can be sterilized using steam or standard cleaning agents. This hose is sold on a roll of 40 m, we also sell pre-cut lengths.
Pros:
- Can be sterilized using steam or cleaning agents
- High temperature range (of -35 °C to 164 °C)
- Suitable for dairy, milk and animal fats/vegetable oils
- Robust, strong, wear and tear resistant hose
NBR (nitrile rubber) series
The HL-N-F series are high quality dairy and milk hoses available in sizes from 40 – 105 mm inside diameter. The hoses are wear and tear resistant and suitable for fatty and non-fatty dairy products. They are available in pre-cut lengths of 3, 5 and 10 meters or as a roll.
Specifications
Internal diameter (mm) : 13
Outer diameter (mm) : 23
Hose length (m) : 40
Hose material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 18
Hose features : Abrasion resistance
Approval : Food-grade
Min temperature (°C) : -35
Max temperature (°C) : 164
Outer wall material : NVC
Bending radius (mm) : 80
Bursting pressure (bar) : 55
Roll length (m) : 40
Number of inlays : 1
Inlay material : Textile
Outside wall color : Blue
