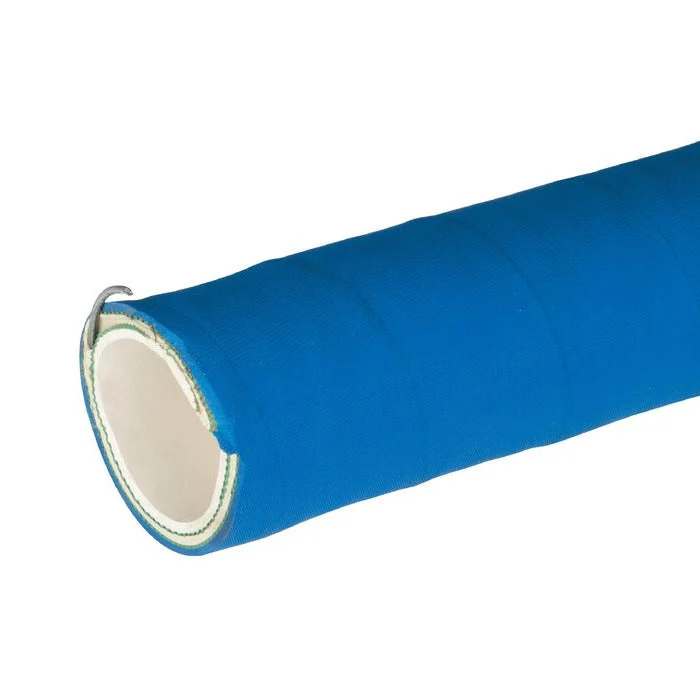

High quality 76 mm dairy & milk pressure and suction hose. The hose is made of NBR (nitrile rubber) with a high tensile strength textile wire and zinc-plated steel coil insert as a pressure support. With a temperature range of -30 °C to 80 °C and an operating pressure of 10 bar an ideal hose for conveying milk, dairy, animal fats and vegetable oils from and to processing points in the agricultural and food industry. High tear, abrasion and ageing resistance. The outer layer of the hose is grease and oil resistant. No plasticizer used during manufacturing. The hose can be sterilized using steam or standard cleaning agents. This hose is sold at a pre-cut length of 5 m, we also offer rolls with a length of 40 m.
Pros:
- Can be sterilized using steam or cleaning agents
- High temperature range (of -30 °C to 80 °C)
- Suitable for dairy, milk and animal fats/vegetable oils
- Robust, strong, wear and tear resistant hose
NBR (nitrile rubber) series
The HL-N-F series are high quality dairy and milk hoses available in sizes from 40 – 105 mm inside diameter. The hoses are wear and tear resistant and suitable for fatty and non-fatty dairy products. They are available in pre-cut lengths of 3, 5 and 10 meters or as a roll.
Specifications
Internal diameter (mm) : 76
Outer diameter (mm) : 89
Hose length (m) : 5
Hose material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 10
Hose features : Abrasion resistance
Approval : Food-grade
Min temperature (°C) : -30
Max temperature (°C) : 80
Outer wall material : NVC
Bending radius (mm) : 190
Bursting pressure (bar) : 30
Roll length (m) : 40
Number of inlays : 1
Inlay material : Textile
Outside wall color : Blue
Max. negative pressure (bar) : -0.8
