Key Features
70 ft-lbs OutputThe brushless motor gives this ratchet the muscle to break loose stubborn bolts without dragging out a larger tool. That matters when you’re working underhood, underbody, or anywhere space is limited. Extended ReachThe long neck and low-profile head help the DEWALT cordless ratchet get into recessed fasteners and tighter working areas where a standard ratchet body gets hung up. Control You Can UseA variable speed trigger, forward and reverse switch, trigger lock, and integrated LED make it easier to work accurately around finished surfaces, wiring, hoses, and cramped assemblies.
Overview

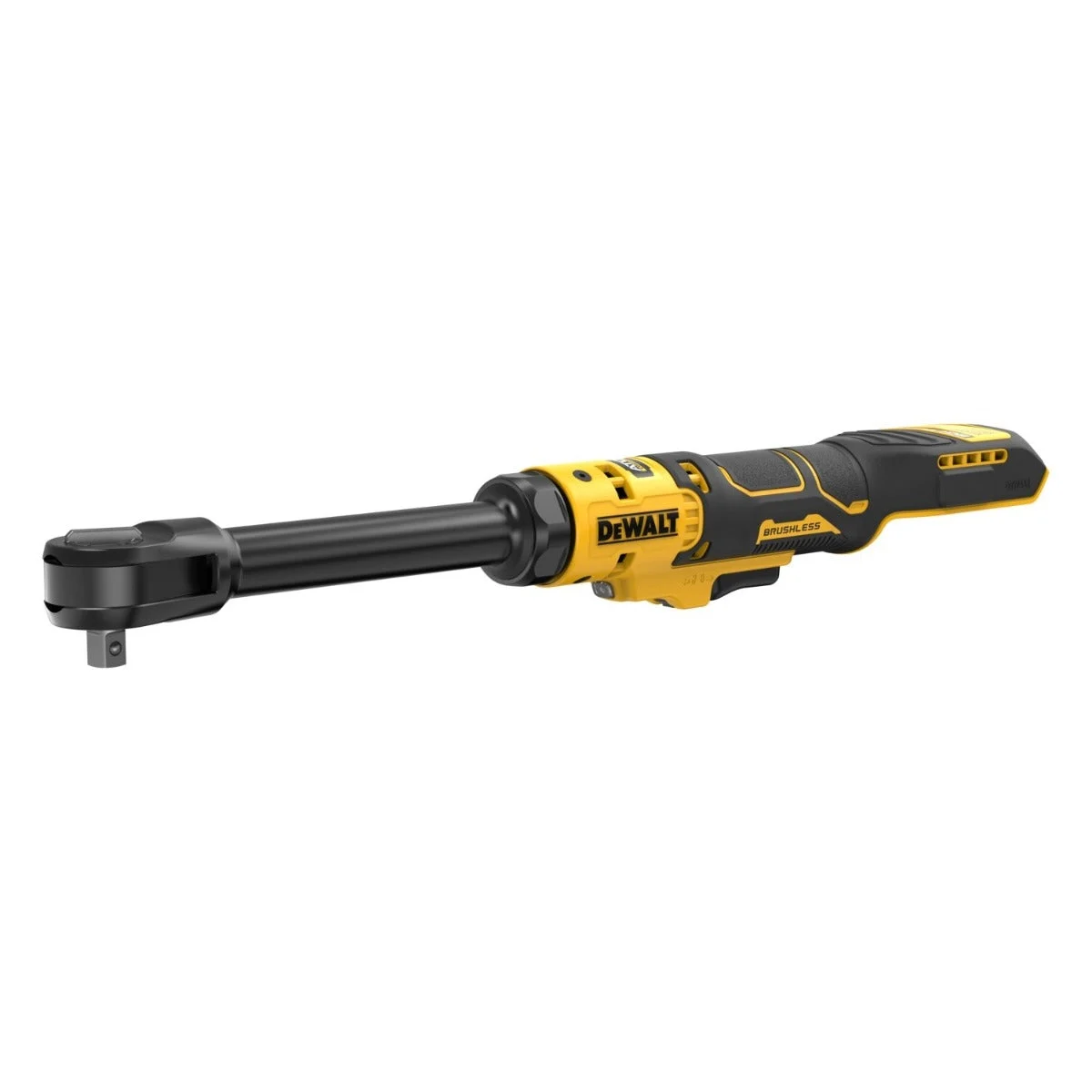

The DEWALT 20V MAX ATOMIC Brushless Cordless 3/8 in. Extended Reach Ratchet, model DCF513EB, is built for mechanics, maintenance techs, and anyone who spends real time working around bolts in tight spaces. This is a cordless ratchet designed for fastening and removing bolts where clearance is limited. As a tool-only setup, it is a smart fit for users already on the DEWALT 20V MAX battery platform and looking to add reach without giving up cordless convenience.
What makes this ratchet matter on the job is the mix of access and usable power. DEWALT rates it at up to 70 ft-lbs. of max torque, which gives it the ability to deal with tougher fasteners than light-duty cordless ratchets typically handle. Pair that with a no-load speed up to 250 RPM and you get a tool that can both break hardware loose and speed through repetitive fastening once the bolt starts moving.
The long neck design is the whole point here, and DEWALT did not treat it like a gimmick. The extended reach and low-profile head are meant for the spots that waste your time with a standard ratchet body: deeper engine bays, crowded equipment panels, and assemblies where your hand cannot sit directly over the fastener. If you regularly work around brackets, shields, pumps, housings, or tucked-in mounting hardware, that extra reach is not just nice to have. It is the difference between getting the job done cleanly or fighting the setup.
Control is also better than you usually get from a compact fastening tool. The variable speed trigger lets you ease into delicate starts or spin faster when you have room to move. The easy-to-activate forward and reverse switch is built to be practical when your hands are gloved or greasy, which is exactly how these tools get used in real shops and service work. DEWALT also adds a trigger lock to help prevent unintentional activation, which is especially useful when the tool is riding in a bag, cart, or drawer between tasks.
From a durability standpoint, the glass-filled nylon housing matters because this is the kind of tool that sees oil, chemicals, and solvents. DEWALT specifically calls out resistance to harsh fluids, which makes sense for automotive and industrial service environments. The integrated LED is another small feature that earns its keep, helping light up the fastener area when you’re working behind components or underneath equipment where overhead lighting does not help much.
System compatibility is straightforward. This ratchet runs on the DEWALT 20V MAX battery platform, and this bare tool version is compatible with all DEWALT 20V MAX batteries, sold separately. That makes it a clean add-on for existing DEWALT users who want to stay on one charger and battery system instead of adding another platform just for a specialty fastening tool.
Who should buy it? If your work involves frequent bolt removal and installation in tight quarters, this DEWALT extended reach ratchet makes a lot of sense. It is especially well suited for automotive work, general mechanical repair, equipment maintenance, and service tasks where access is the bottleneck. If you only need a ratchet once in a while, a manual tool may still do the job. But if you fight hard-to-reach fasteners every week, this is the kind of cordless ratchet that saves time fast.
Reach Fasteners Without Repositioning Everything
The big advantage here is simple: you can get the ratchet head where the fastener is without the battery and handle crowding the work area. That means less knuckle-busting, less tool swapping, and faster access around packed components.
- Extended reach neck with a low-profile head for confined work areas
- 3/8 in. anvil fits common socket sizes used in service and repair work
- Integrated LED helps when the fastener sits behind parts or below eye level
What’s in the Box
- (1) DCF513E Extended Reach Ratchet
Battery and charger sold separately.
Key Specifications
| Drive Size | 3/8 in. |
|---|---|
| Voltage | 20 V |
| Motor Type | Brushless |
| Max Torque | 70 ft-lbs. |
| No-Load Speed | Up to 250 RPM |
| Weight | 3.15 lbs |
| Power Source | Battery |
| Made In | Mexico |
Compatibility
Battery PlatformCompatible with all DEWALT 20V MAX batteries. Battery sold separately on this bare tool version. Charging SystemCharger is not included. Best fit for users already invested in the DEWALT 20V MAX cordless platform. Socket InterfaceUses a 3/8 in. anvil for standard 3/8 in. drive socket applications.
Built For
Automotive Mechanical Repair Equipment Maintenance Tight-Space Fastening Service Work Bolt Removal and Installation
Pro Tip
Use the variable speed trigger lightly when starting bolts in cramped areas. It gives you better control on thread starts, then you can squeeze deeper into the trigger once the fastener is running clean.
Warranty & Support
3 Year Limited Warranty, 1 Year Free Service, 90 Day Satisfaction Guaranteed.
Tool Nut’s Take
Tool Nut’s Take
DEWALT 20V MAX ATOMIC Brushless Cordless 3/8 in. Extended Reach Ratchet Gets You to the Fastener
This is the kind of cordless ratchet that earns its spot by solving a real problem: getting solid power onto bolts that are buried where a standard body ratchet fights you.
- Who it’s for: Mechanics, maintenance crews, and serious DIY users who deal with hard-to-reach bolts on a regular basis.
- Why it stands out: The combination of extended reach, 70 ft-lbs. of torque, brushless motor, and DEWALT 20V MAX battery compatibility makes it more useful than a basic compact ratchet.
- Worth knowing: This is a bare tool, so plan on supplying your own battery and charger. If you’re already on DEWALT 20V MAX, that is a non-issue.
Common Questions
- Is this a bare tool? Yes. The DCF513EB is sold as a tool only, so the battery and charger are sold separately.
- What battery platform does it use? It is compatible with all DEWALT 20V MAX batteries.
- How much torque does it produce? DEWALT lists up to 70 ft-lbs. of max torque.
- What is the top speed? The variable speed trigger offers a no-load speed up to 250 RPM.
